TSRM/MK3 Supra/Repair Manual
Repair ManualWiring Diagrams
p.113
AT/Automatic Transmission114 / 144
p.115
(Lower Valve Body)
COMPONENTS — MK3 Supra Automatic Transmission, page 114
100%

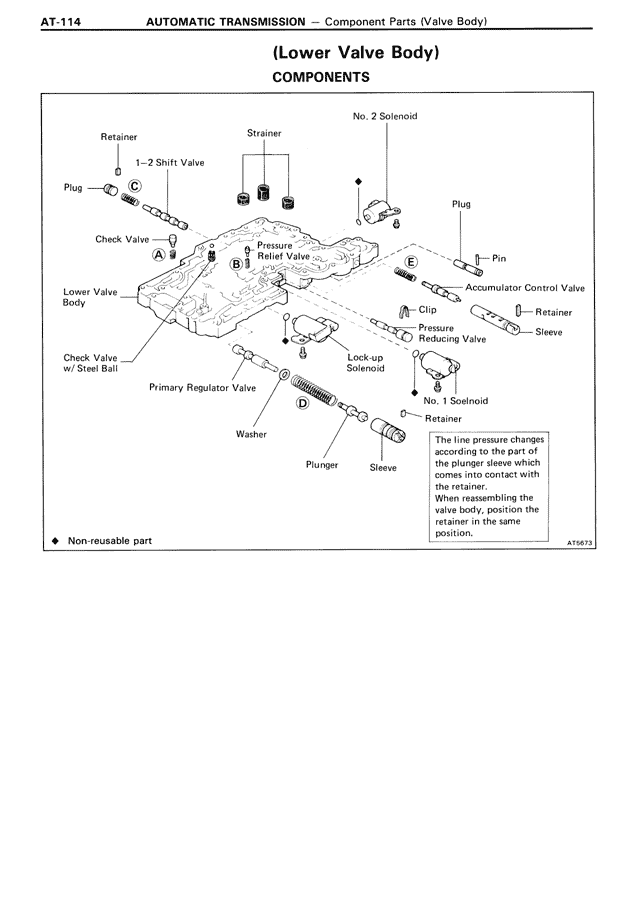

AT-114 AUTOMATIC TRANSMISSION — Component Parts (Valve Body) (Lower Valve Body) COMPONENTS Retainer 1-2 Shift Valve Plug C Check Valve A Lower Valve Body Check Valve w/Steel Ball Strainer Pressure Relief Valve B Primary Regulator Valve D Washer Plunger Sleeve No. 2 Solenoid Plug Pin E Accumulator Control Valve Clip Retainer Pressure Sleeve Reducing Valve Lock-up Solenoid No. 1 Solenoid Retainer The line pressure changes according to the part of the plunger sleeve which comes into contact with the retainer. When reassembling the valve body, position the retainer in the same position. ◆ Non-reusable part AT6673
