AUTOMATIC TRANSMISSION — Component Parts (Valve Body)                    AT-115

SPECIFICATIONS OF VALVE BODY SPRINGS

Spring                          Free length    mm (in.)    Coil outer diameter    Total No.        Color
                                                            mm (in.)               of coils

A    Check valve                20.2 (0.795)                12.1 (0.476)          6.5              None

B    Pressure relief valve      11.2 (0.441)                6.4 (0.252)           7.5              None

C    1-2 shift valve            30.8 (1.213)                9.7 (0.382)           10.5             Purple

D    Primary regulator valve    66.7 (2.626)                18.6 (0.732)          12.5             None

E    Accumulator control valve  33.9 (1.335)                8.8 (0.346)           12.0             Pink

HINT: During reassembly, please refer to the spring specifications above to help differentiate the different
springs.

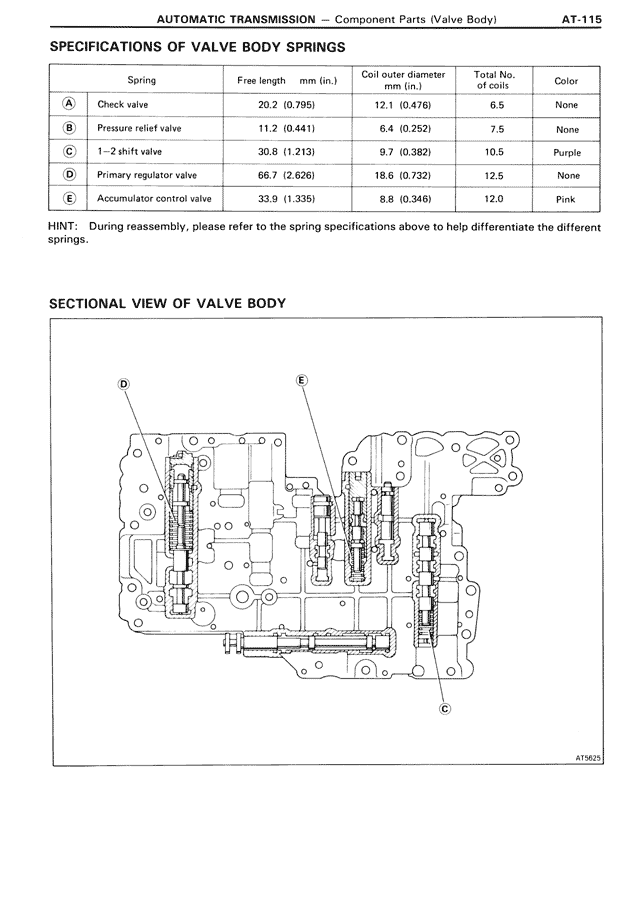

SECTIONAL VIEW OF VALVE BODY

[THIS IS FIGURE: A detailed technical diagram showing a sectional view of a valve body with labeled components D, E, and C pointing to different parts of the mechanism. The diagram shows internal mechanical components including springs, valves, and passages. Reference number AT3623 appears at the bottom right.]
