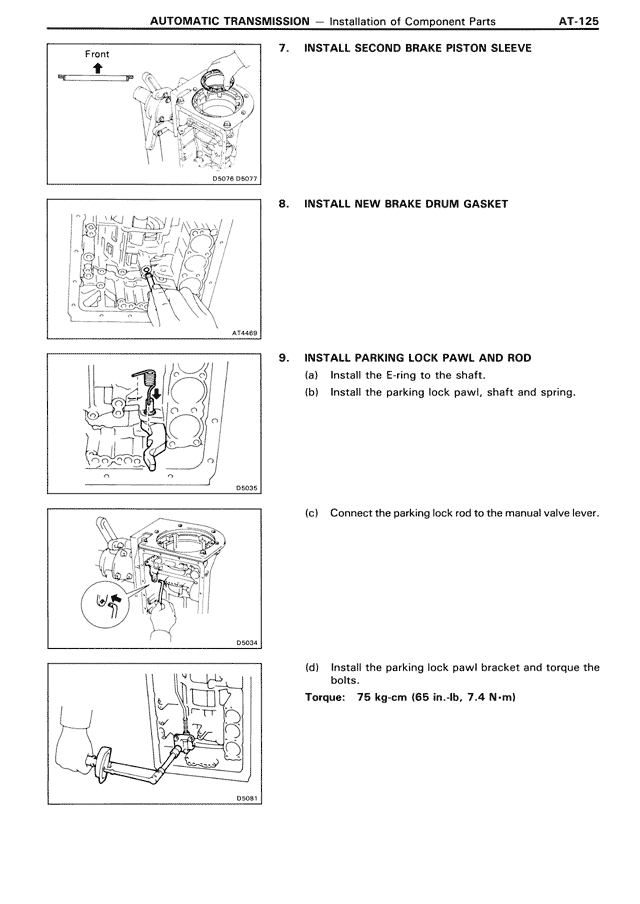

AUTOMATIC TRANSMISSION — Installation of Component Parts AT-125 7. INSTALL SECOND BRAKE PISTON SLEEVE Front D6076 D5037 8. INSTALL NEW BRAKE DRUM GASKET AT4469 9. INSTALL PARKING LOCK PAWL AND ROD (a) Install the E-ring to the shaft. (b) Install the parking lock pawl, shaft and spring. D6035 (c) Connect the parking lock rod to the manual valve lever. D6034 (d) Install the parking lock pawl bracket and torque the bolts. Torque: 75 kg·cm (65 in.·lb, 7.4 N·m) D6061
