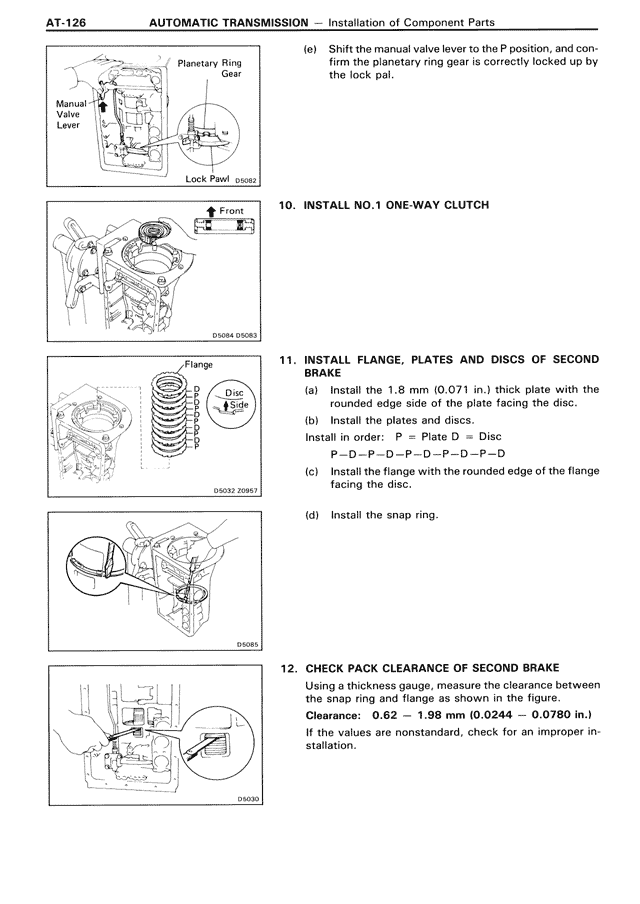

AT-126 AUTOMATIC TRANSMISSION — Installation of Component Parts Manual Valve Lever Planetary Ring Gear Lock Pawl D10082 Front ←——→ Rear D1054A D10083 Flange Disc Side D5032 20947 D10061 D10050 (e) Shift the manual valve lever to the P position, and confirm the planetary ring gear is correctly locked up by the lock pal. 10. INSTALL NO.1 ONE-WAY CLUTCH 11. INSTALL FLANGE, PLATES AND DISCS OF SECOND BRAKE (a) Install the 1.8 mm (0.071 in.) thick plate with the rounded edge side of the plate facing the disc. (b) Install the plates and discs. Install in order: P = Plate D = Disc P—D—P—D—P—D—P—D—P—D (c) Install the flange with the rounded edge of the flange facing the disc. (d) Install the snap ring. 12. CHECK PACK CLEARANCE OF SECOND BRAKE Using a thickness gauge, measure the clearance between the snap ring and flange as shown in the figure. Clearance: 0.62 — 1.98 mm (0.0244 — 0.0780 in.) If the values are nonstandard, check for an improper installation.
