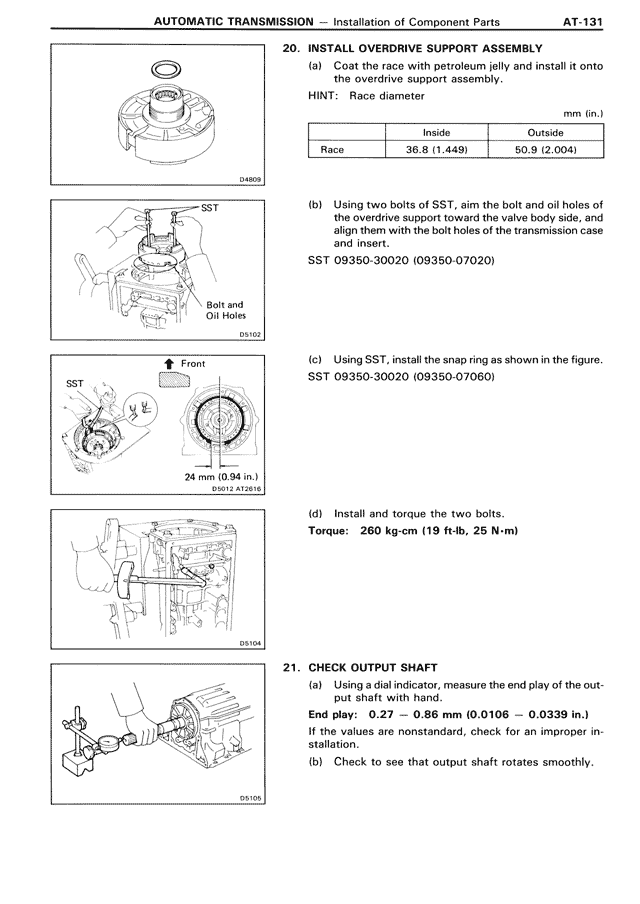

20. INSTALL OVERDRIVE SUPPORT ASSEMBLY (a) Coat the race with petroleum jelly and install it onto the overdrive support assembly. HINT: Race diameter mm (in.) Race | Inside | Outside | 36.8 (1.449) | 50.9 (2.004) (b) Using two bolts of SST, aim the bolt and oil holes of the overdrive support toward the valve body side, and align them with the bolt holes of the transmission case and insert. SST 09350-30020 (09350-07020) (c) Using SST, install the snap ring as shown in the figure. SST 09350-30020 (09350-07020) 24 mm (0.94 in.) (d) Install and torque the two bolts. Torque: 260 kg-cm (19 ft-lb, 25 N-m) 21. CHECK OUTPUT SHAFT (a) Using a dial indicator, measure the end play of the output shaft with hand. End play: 0.27 — 0.86 mm (0.0106 — 0.0339 in.) If the values are nonstandard, check for an improper installation. (b) Check to see that output shaft rotates smoothly.
