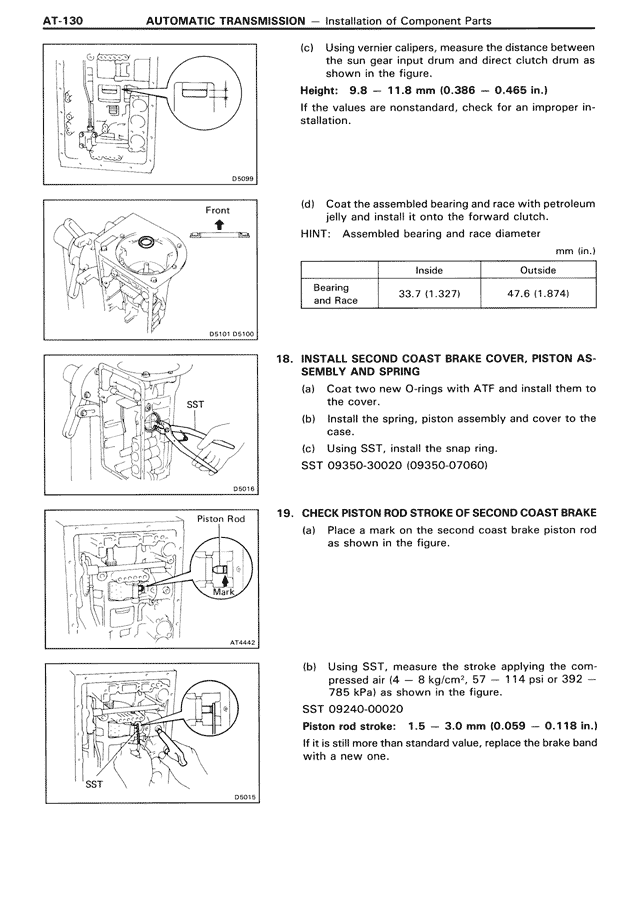

AT-130 AUTOMATIC TRANSMISSION — Installation of Component Parts
(c) Using vernier calipers, measure the distance between the sun gear input drum and direct clutch drum as shown in the figure.
Height: 9.8 — 11.8 mm (0.386 — 0.465 in.)
If the values are nonstandard, check for an improper installation.
(d) Coat the assembled bearing and race with petroleum jelly and install it onto the forward clutch.
HINT: Assembled bearing and race diameter
mm (in.)
Inside Outside
Bearing
and Race 33.7 (1.327) 47.6 (1.874)
18. INSTALL SECOND COAST BRAKE COVER, PISTON ASSEMBLY AND SPRING
(a) Coat two new O-rings with ATF and install them to the cover.
(b) Install the spring, piston assembly and cover to the case.
(c) Using SST, install the snap ring.
SST 09350-30020 (09350-07060)
19. CHECK PISTON ROD STROKE OF SECOND COAST BRAKE
(a) Place a mark on the second coast brake piston rod as shown in the figure.
(b) Using SST, measure the stroke applying the compressed air (4 — 8 kg/cm², 57 — 114 psi or 392 — 785 kPa) as shown in the figure.
SST 09240-00020
Piston rod stroke: 1.5 — 3.0 mm (0.059 — 0.118 in.)
If it is still more than standard value, replace the brake band with a new one.
