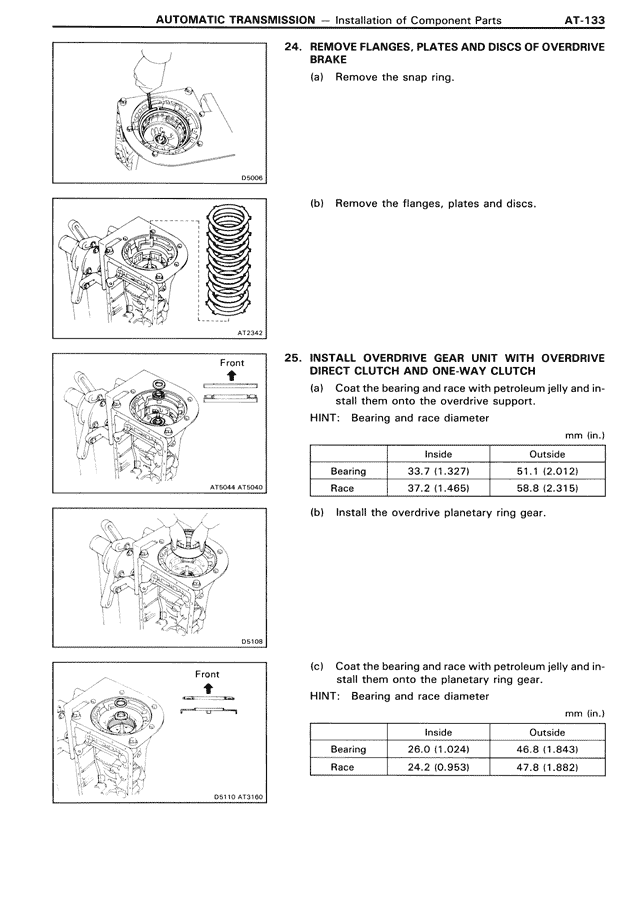

24. REMOVE FLANGES, PLATES AND DISCS OF OVERDRIVE BRAKE
(a) Remove the snap ring.
(b) Remove the flanges, plates and discs.
25. INSTALL OVERDRIVE GEAR UNIT WITH OVERDRIVE DIRECT CLUTCH AND ONE-WAY CLUTCH
(a) Coat the bearing and race with petroleum jelly and install them onto the overdrive support.
HINT: Bearing and race diameter
mm (in.)
Inside Outside
Bearing 33.7 (1.327) 51.1 (2.012)
Race 37.2 (1.465) 58.8 (2.315)
(b) Install the overdrive planetary ring gear.
(c) Coat the bearing and race with petroleum jelly and install them onto the planetary ring gear.
HINT: Bearing and race diameter
mm (in.)
Inside Outside
Bearing 26.0 (1.024) 46.8 (1.843)
Race 24.2 (0.953) 47.8 (1.882)
