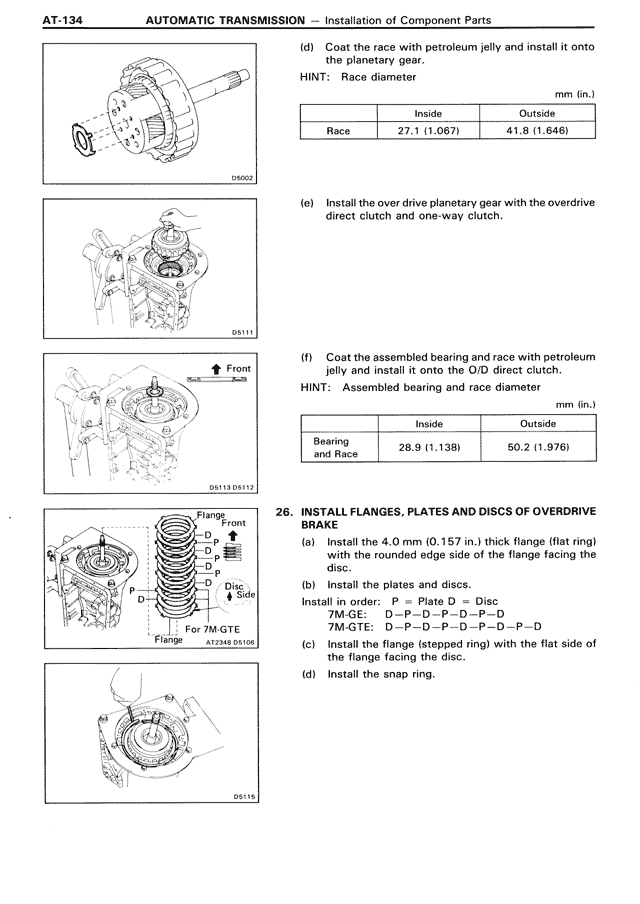

AT-134 AUTOMATIC TRANSMISSION — Installation of Component Parts
(d) Coat the race with petroleum jelly and install it onto
the planetary gear.
HINT: Race diameter
mm (in.)
Inside Outside
Race 27.1 (1.067) 41.8 (1.646)
D5002
(e) Install the over drive planetary gear with the overdrive
direct clutch and one-way clutch.
D5111
(f) Coat the assembled bearing and race with petroleum
jelly and install it onto the O/D direct clutch.
HINT: Assembled bearing and race diameter
mm (in.)
Inside Outside
Bearing
and Race 28.9 (1.138) 50.2 (1.976)
D5113 D5112
26. INSTALL FLANGES, PLATES AND DISCS OF OVERDRIVE
BRAKE
(a) Install the 4.0 mm (0.157 in.) thick flange (flat ring)
with the rounded edge side of the flange facing the
disc.
(b) Install the plates and discs.
Install in order: P = Plate D = Disc
7M-GE: D—P—D—P—D—P—D
7M-GTE: D—P—D—P—D—P—D—P—D
(c) Install the flange (stepped ring) with the flat side of
the flange facing the disc.
(d) Install the snap ring.
Flange
Front
D p
D p
D p
D p
D
For 7M-GTE
Flange AT-245-SU08
