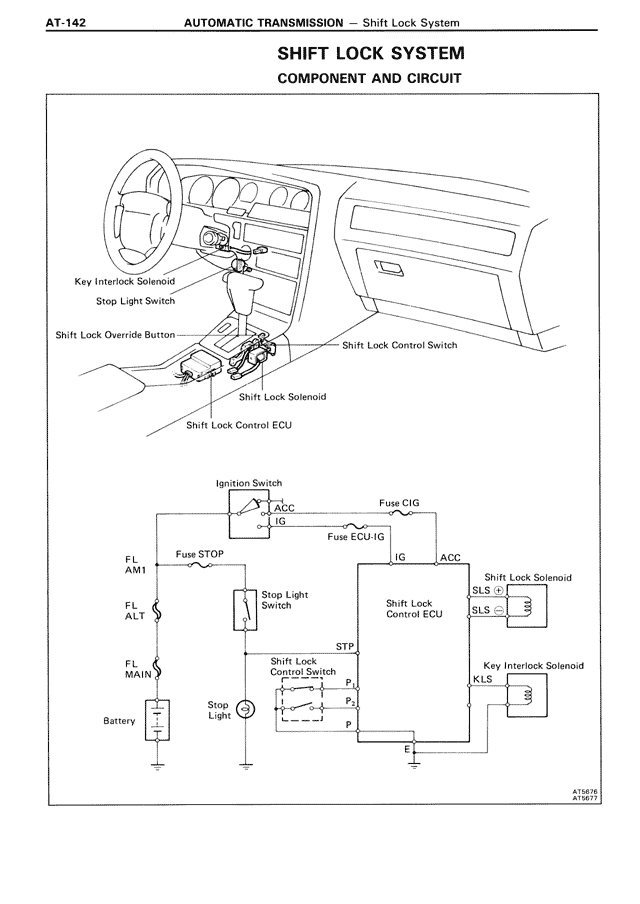

AT/Automatic Transmission — Shift Lock System Component and Circuit, page 142

AT-142

AUTOMATIC TRANSMISSION — Shift Lock System

SHIFT LOCK SYSTEM
COMPONENT AND CIRCUIT

Key Interlock Solenoid
Stop Light Switch
Shift Lock Override Button
Shift Lock Control Switch
Shift Lock Solenoid
Shift Lock Control ECU

Ignition Switch
ACC
IG
Fuse C/G
Fuse ECU-IG
Fuse STOP
FL AM1
FL ALT
Stop Light Switch
Shift Lock Control ECU
IG
ACC
Shift Lock Solenoid
SLS
SLS
FL MAIN
Shift Lock Control Switch
STP
Key Interlock Solenoid
KLS
Stop Light
Battery

AT6876
AT6877
