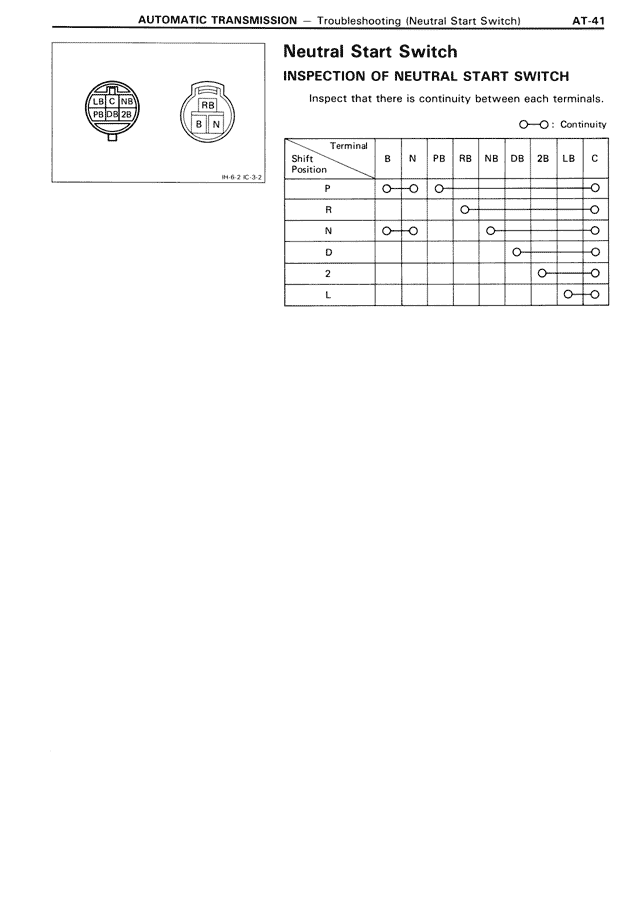

Neutral Start Switch — MK3 Supra Automatic Transmission, page 41
100%
AUTOMATIC TRANSMISSION — Troubleshooting (Neutral Start Switch) AT-41 Neutral Start Switch INSPECTION OF NEUTRAL START SWITCH Inspect that there is continuity between each terminals. O—O: Continuity [THIS IS TABLE: Terminal continuity table showing shift positions (P, R, N, D, 2, L) and their corresponding terminal connections (B, N, PB, RB, NB, DB, 2B, LB, C). Circles indicate continuity between terminals for each shift position.]
