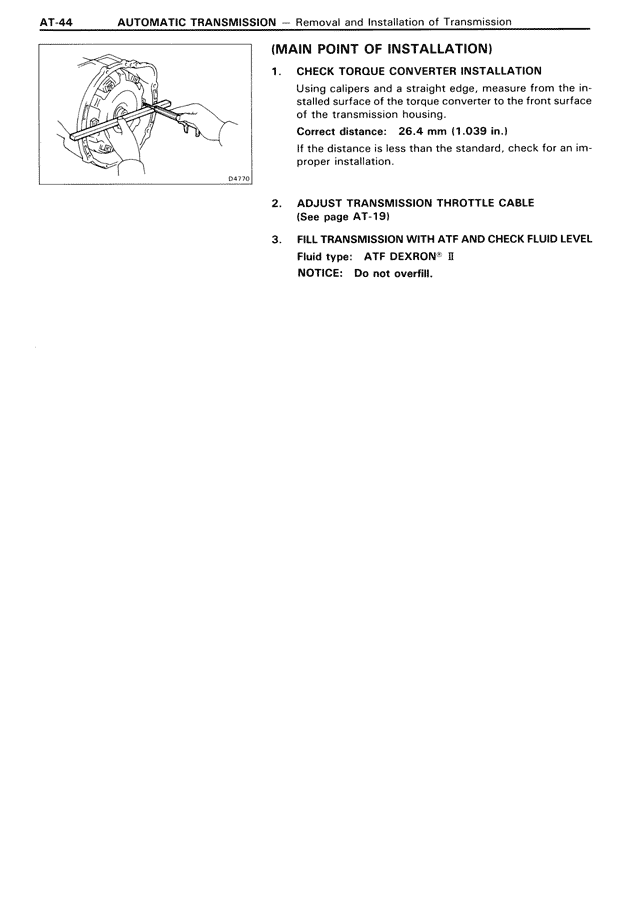

(MAIN POINT OF INSTALLATION)
1. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the installed surface of the torque converter to the front surface of the transmission housing.
Correct distance: 26.4 mm (1.039 in.)
If the distance is less than the standard, check for an improper installation.
2. ADJUST TRANSMISSION THROTTLE CABLE
(See page AT-19)
3. FILL TRANSMISSION WITH ATF AND CHECK FLUID LEVEL
Fluid type: ATF DEXRON® II
NOTICE: Do not overfill.
