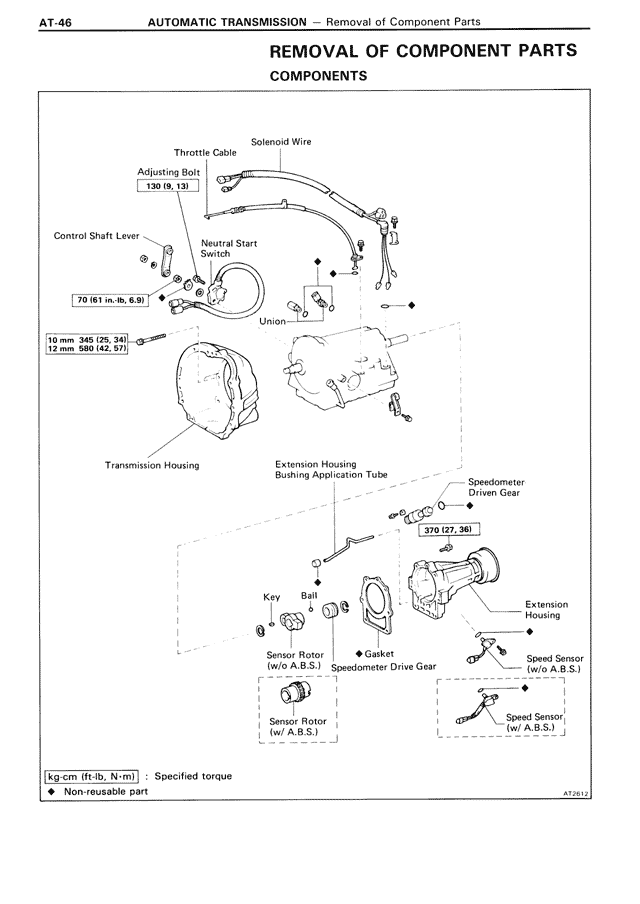

AT-46 AUTOMATIC TRANSMISSION — Removal of Component Parts REMOVAL OF COMPONENT PARTS COMPONENTS Throttle Cable Solenoid Wire Adjusting Bolt 120 (9, 13) Control Shaft Lever Neutral Start Switch 70 (61 in.-lb, 6.9) Union 10 mm 345 (25, 34) 12 mm 580 (42, 57) Transmission Housing Extension Housing Bushing Application Tube Speedometer Driven Gear 370 (27, 38) Key Ball Extension Housing Sensor Rotor Gasket (w/o A.B.S.) Speedometer Drive Gear Speed Sensor (w/o A.B.S.) Sensor Rotor (w/ A.B.S.) Speed Sensor (w/ A.B.S.) kg-cm (ft-lb, N-m) : Specified torque ♦ Non-reusable part AT2617
