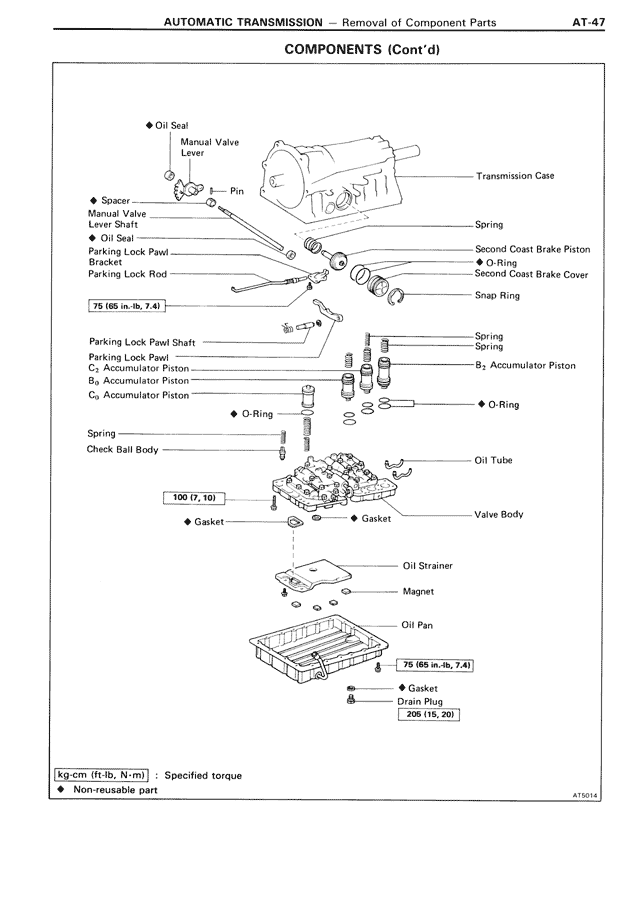

COMPONENTS (Cont'd)
◆ Oil Seal
Manual Valve
Lever
◆ Spacer
Manual Valve
Lever Shaft
◆ Oil Seal
Parking Lock Pawl
Bracket
Parking Lock Rod
Pin
Transmission Case
Spring
Second Coast Brake Piston
◆ O-Ring
Second Coast Brake Cover
Snap Ring
75 (65 in.-lb, 7.4)
Parking Lock Pawl Shaft
Parking Lock Pawl
C₂ Accumulator Piston
B₂ Accumulator Piston
C₀ Accumulator Piston
Spring
Spring
B₂ Accumulator Piston
◆ O-Ring
Spring
Check Ball Body
Oil Tube
100 (2, 10)
◆ Gasket
◆ Gasket
Valve Body
Oil Strainer
Magnet
Oil Pan
75 (65 in.-lb, 7.4)
◆ Gasket
Drain Plug
205 (15, 20)
kg-cm (ft-lb, N·m) : Specified torque
◆ Non-reusable part
AT5014
