AT-48

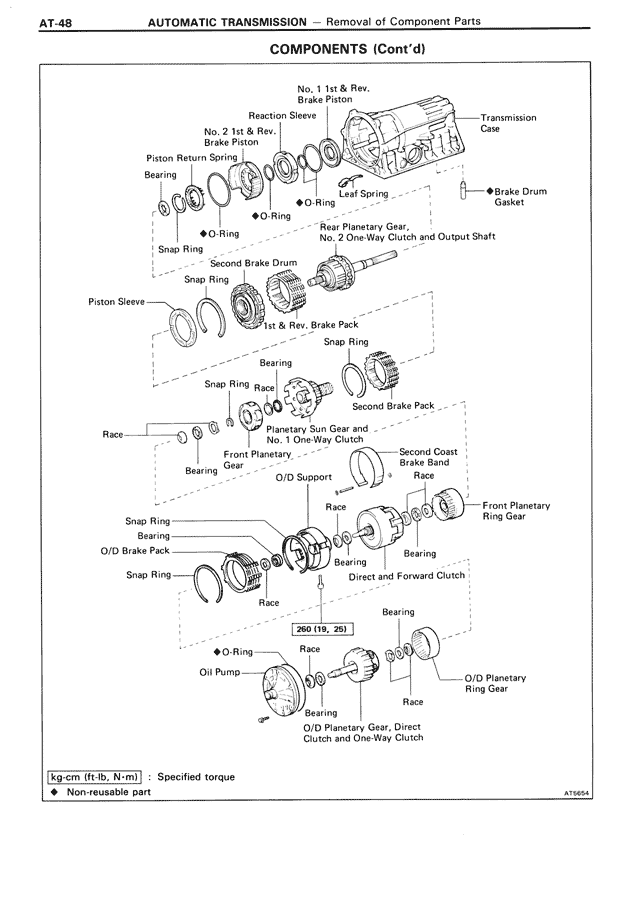

AUTOMATIC TRANSMISSION — Removal of Component Parts
COMPONENTS (Cont'd)
No. 1 1st & Rev.
Brake Piston
Reaction Sleeve
Transmission
Case
No. 2 1st & Rev.
Brake Piston
Piston Return Spring
Bearing
Leaf Spring
♦Brake Drum
Gasket
♦O-Ring
♦O-Ring
♦O-Ring
Rear Planetary Gear,
No. 2 One-Way Clutch and Output Shaft
Snap Ring
Second Brake Drum
Snap Ring
Piston Sleeve
1st & Rev. Brake Pack
Snap Ring
Bearing
Snap Ring
Race
Second Brake Pack
Planetary Sun Gear and
No. 1 One-Way Clutch
Race
Second Coast
Brake Band
Front Planetary
O/D Support
Race
Bearing
Front Planetary
Ring Gear
Race
Snap Ring
Bearing
O/D Brake Pack
Bearing
Bearing
Direct and Forward Clutch
Snap Ring
Race
Bearing
[260 (19, 26)]
♦O-Ring
Race
Oil Pump
O/D Planetary
Ring Gear
Bearing
Race
O/D Planetary Gear, Direct
Clutch and One-Way Clutch
kg-cm (ft-lb, N-m) : Specified torque
♦ Non-reusable part
AT5454
