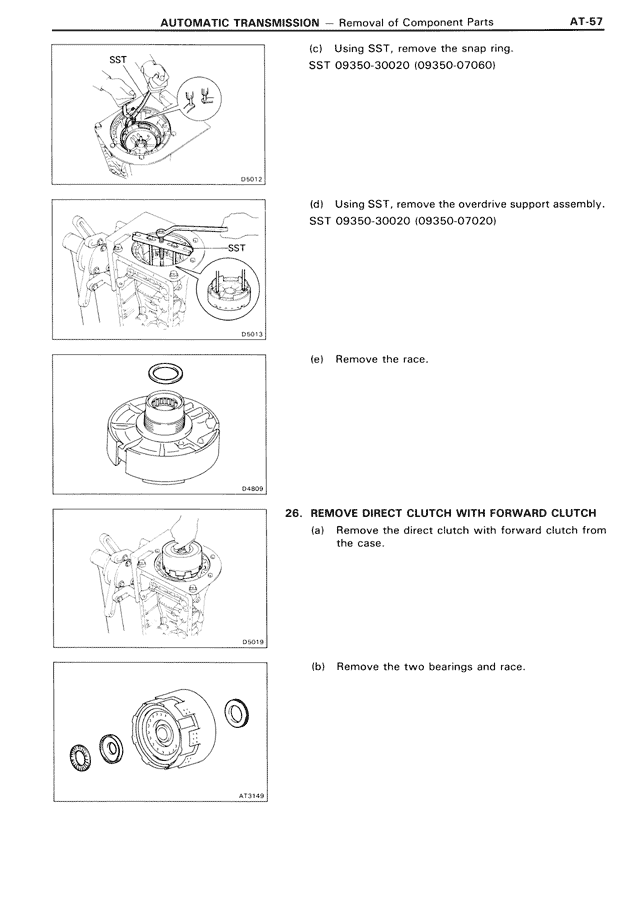

AUTOMATIC TRANSMISSION — Removal of Component Parts                    AT-57

(c) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)

(d) Using SST, remove the overdrive support assembly.
SST 09350-30020 (09350-07020)

(e) Remove the race.

26. REMOVE DIRECT CLUTCH WITH FORWARD CLUTCH
(a) Remove the direct clutch with forward clutch from
the case.

(b) Remove the two bearings and race.
