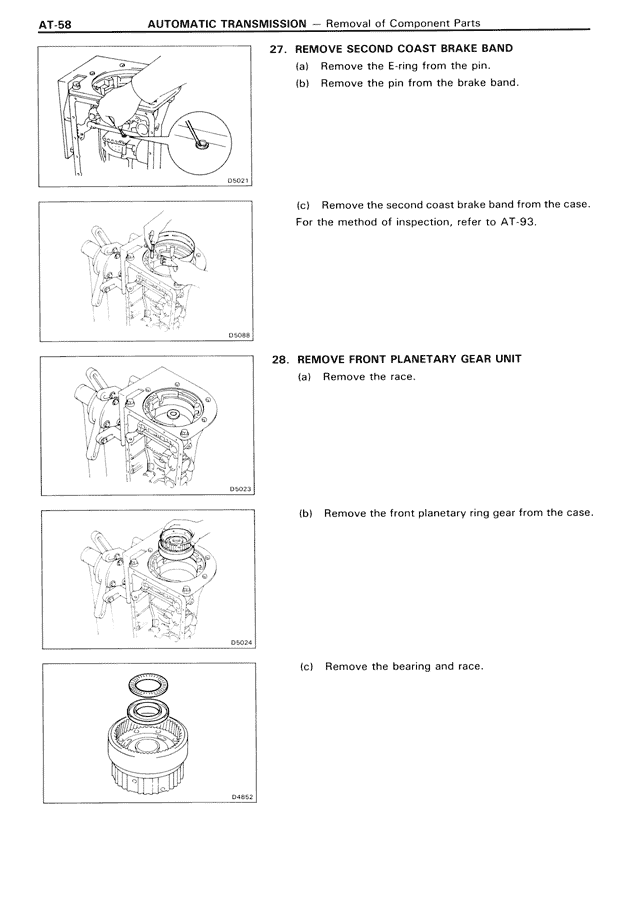

AT-58 AUTOMATIC TRANSMISSION — Removal of Component Parts 27. REMOVE SECOND COAST BRAKE BAND (a) Remove the E-ring from the pin. (b) Remove the pin from the brake band. D5021 (c) Remove the second coast brake band from the case. For the method of inspection, refer to AT-93. D5068 28. REMOVE FRONT PLANETARY GEAR UNIT (a) Remove the race. D5023 (b) Remove the front planetary ring gear from the case. D5024 (c) Remove the bearing and race. D4852
