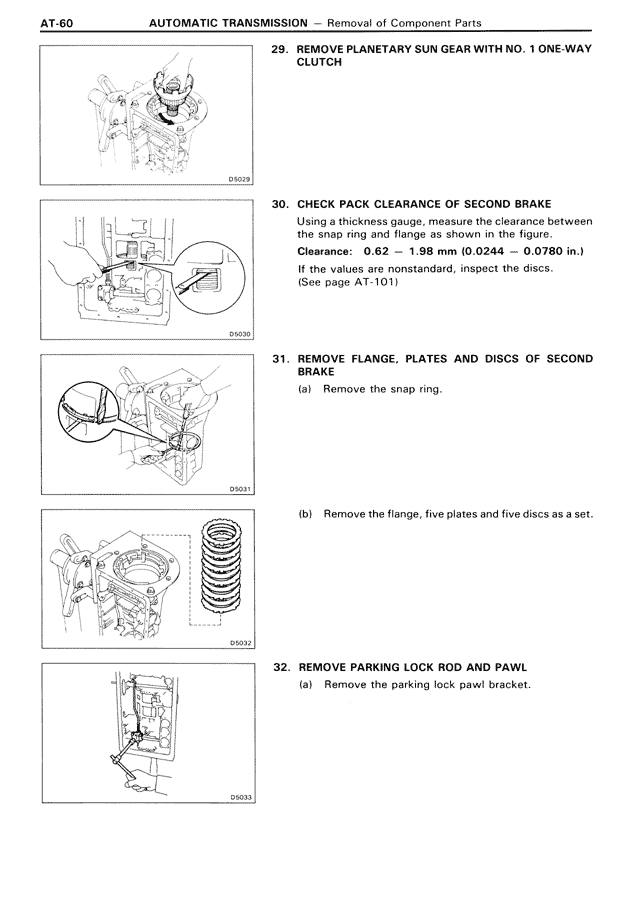

AT-60
AUTOMATIC TRANSMISSION — Removal of Component Parts
29. REMOVE PLANETARY SUN GEAR WITH NO. 1 ONE-WAY CLUTCH
30. CHECK PACK CLEARANCE OF SECOND BRAKE
Using a thickness gauge, measure the clearance between the snap ring and flange as shown in the figure.
Clearance: 0.62 — 1.98 mm (0.0244 — 0.0780 in.)
If the values are nonstandard, inspect the discs.
(See page AT-101)
31. REMOVE FLANGE, PLATES AND DISCS OF SECOND BRAKE
(a) Remove the snap ring.
(b) Remove the flange, five plates and five discs as a set.
32. REMOVE PARKING LOCK ROD AND PAWL
(a) Remove the parking lock pawl bracket.
