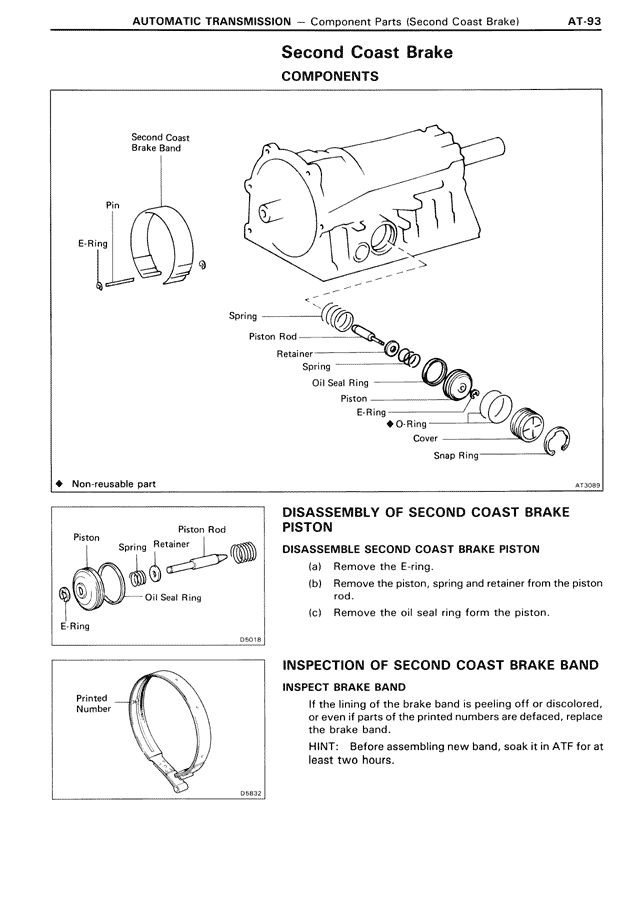

AUTOMATIC TRANSMISSION — Component Parts (Second Coast Brake)     AT-93

Second Coast Brake
COMPONENTS

Second Coast
Brake Band

Pin

E-Ring

Spring
Piston Rod
Retainer
Spring
Oil Seal Ring
Piston
E-Ring
♦ O-Ring
E-Ring
Snap Ring

♦ Non-reusable part

AT-3093

DISASSEMBLY OF SECOND COAST BRAKE
PISTON

Piston     Spring  Retainer     Piston Rod

Oil Seal Ring

E-Ring

D3C16

DISASSEMBLE SECOND COAST BRAKE PISTON
(a)  Remove the E-ring.
(b)  Remove the piston, spring and retainer from the piston
      rod.
(c)  Remove the oil seal ring form the piston.

INSPECTION OF SECOND COAST BRAKE BAND

Printed
Number

D3432

INSPECT BRAKE BAND
If the lining of the brake band is peeling off or discolord,
or even if parts of the printed numbers are defaced, replace
the brake band.
HINT:  Before assembling new band, soak it in ATF for at
        least two hours.
