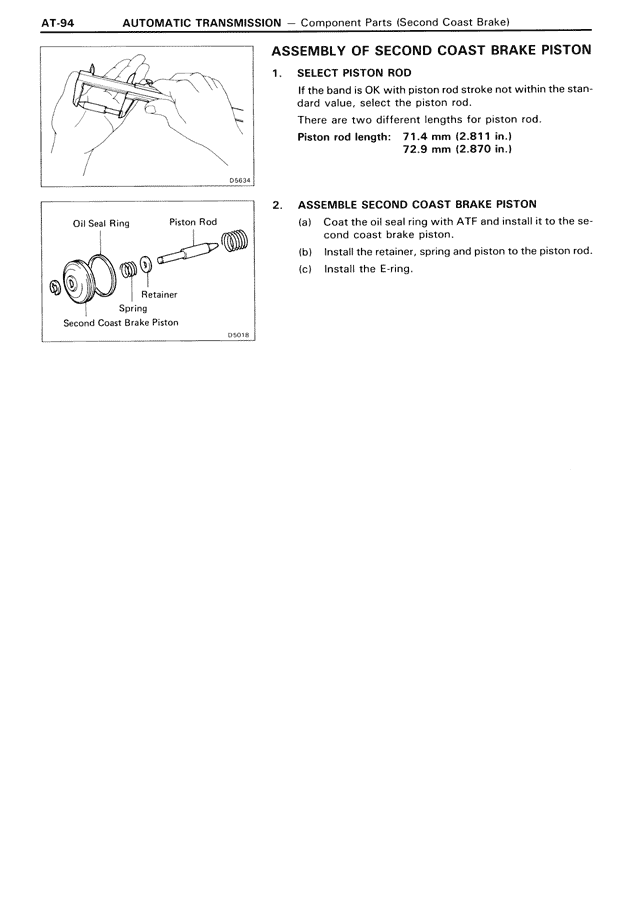

AT-94          AUTOMATIC TRANSMISSION — Component Parts (Second Coast Brake)

ASSEMBLY OF SECOND COAST BRAKE PISTON

1.    SELECT PISTON ROD

      If the hand is OK with piston rod stroke not within the stan-
      dard value, select the piston rod.
      There are two different lengths for piston rod.
      Piston rod length: 71.4 mm (2.811 in.)
                        72.9 mm (2.870 in.)

2.    ASSEMBLE SECOND COAST BRAKE PISTON

      (a)   Coat the oil seal ring with ATF and install it to the se-
            cond coast brake piston.
      (b)   Install the retainer, spring and piston to the piston rod.
      (c)   Install the E-ring.

D5634

Oil Seal Ring      Piston Rod

                   Retainer
      Spring
Second Coast Brake Piston

D5635
