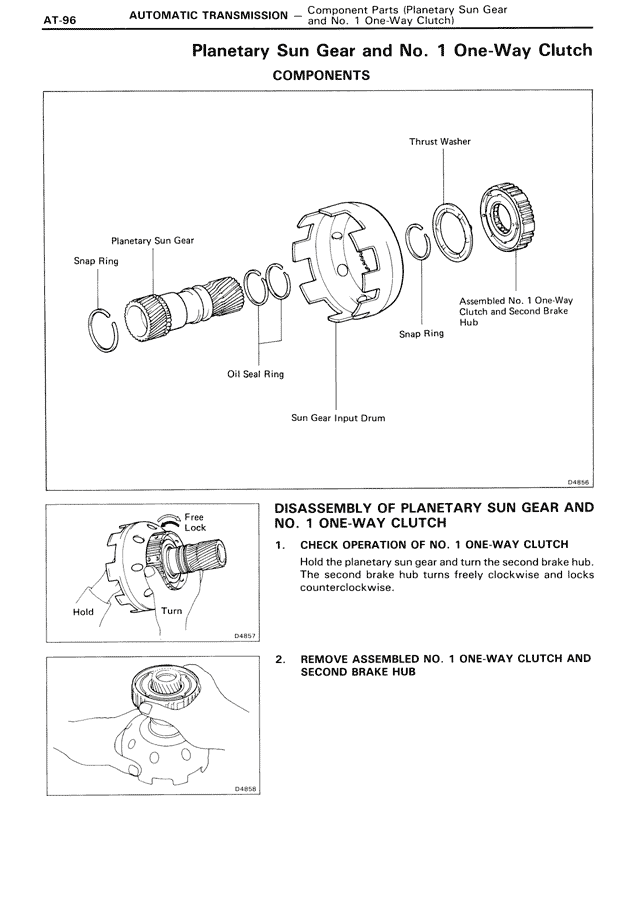

AT/Automatic Transmission — Planetary Sun Gear and No. 1 One-Way Clutch Components, page 96

AT-96

AUTOMATIC TRANSMISSION — Component Parts (Planetary Sun Gear and No. 1 One-Way Clutch)

Planetary Sun Gear and No. 1 One-Way Clutch
COMPONENTS

Thrust Washer

Planetary Sun Gear
Snap Ring

Assembled No. 1 One-Way Clutch and Second Brake Hub

Snap Ring

Oil Seal Ring

Sun Gear Input Drum

D4856

DISASSEMBLY OF PLANETARY SUN GEAR AND NO. 1 ONE-WAY CLUTCH

1. CHECK OPERATION OF NO. 1 ONE-WAY CLUTCH
Hold the planetary sun gear and turn the second brake hub. The second brake hub turns freely clockwise and locks counterclockwise.

Free
Hold
Turn

D4857

2. REMOVE ASSEMBLED NO. 1 ONE-WAY CLUTCH AND SECOND BRAKE HUB

D4858
