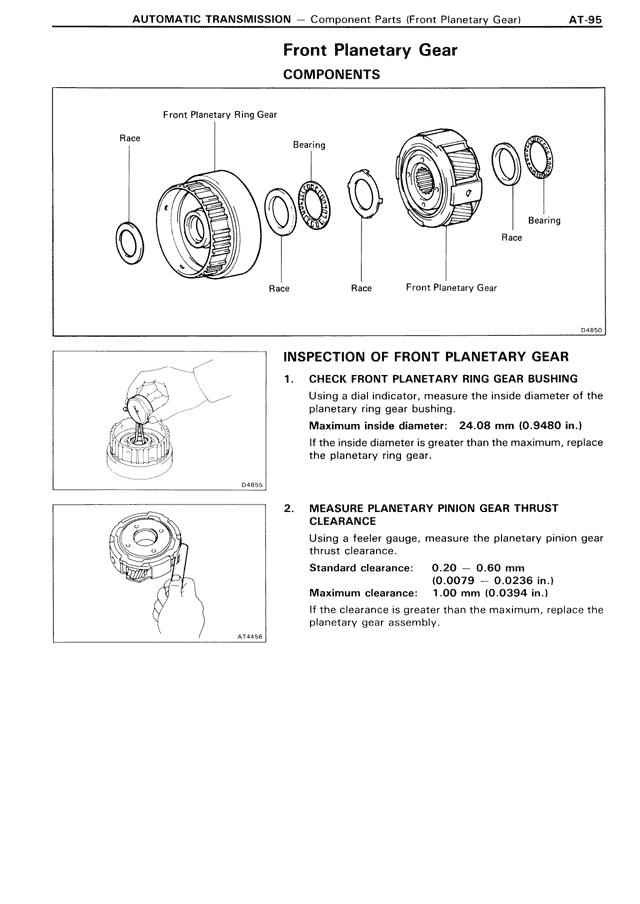

Front Planetary Gear
COMPONENTS
Front Planetary Ring Gear
Race
Bearing
Race
Race
Front Planetary Gear
Bearing Race
Bearing
D3850
INSPECTION OF FRONT PLANETARY GEAR
1. CHECK FRONT PLANETARY RING GEAR BUSHING
Using a dial indicator, measure the inside diameter of the planetary ring gear bushing.
Maximum inside diameter: 24.08 mm (0.9480 in.)
If the inside diameter is greater than the maximum, replace the planetary ring gear.
D4855
2. MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance: 0.20 - 0.60 mm
(0.0079 - 0.0236 in.)
Maximum clearance: 1.00 mm (0.0394 in.)
If the clearance is greater than the maximum, replace the planetary gear assembly.
AT4496
