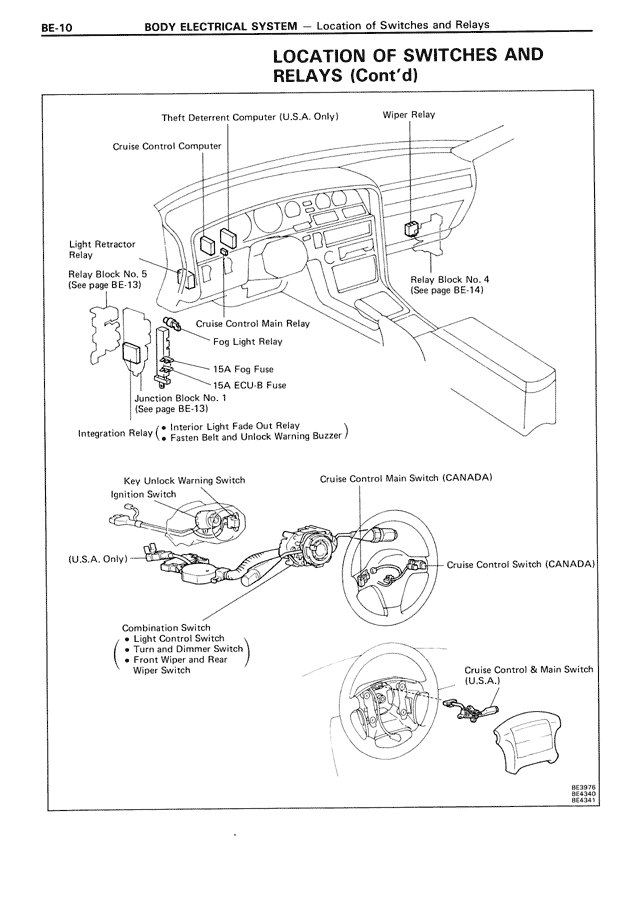

BODY ELECTRICAL SYSTEM — Location of Switches and Relays

LOCATION OF SWITCHES AND
RELAYS (Cont'd)

Theft Deterrent Computer (U.S.A. Only)

Wiper Relay

Cruise Control Computer

Light Retractor
Relay

Relay Block No. 5
(See page BE-13)

Relay Block No. 4
(see page BE-14)

Cruise Control Main Relay

Fog Light Relay

15A Fog Fuse

15A ECU-B Fuse

Junction Block No. 1
(See page BE-13)

Integration Relay { Interior Light Fade Out Relay
                    Fasten Belt and Unlock Warning Buzzer }

Key Unlock Warning Switch
Ignition Switch

(U.S.A. Only)

Cruise Control Main Switch (CANADA)

Cruise Control Switch (CANADA)

Combination Switch
• Light Control Switch
• Turn and Dimmer Switch
• Front Wiper and Rear
  Wiper Switch

Cruise Control & Main Switch
(U.S.A.)
