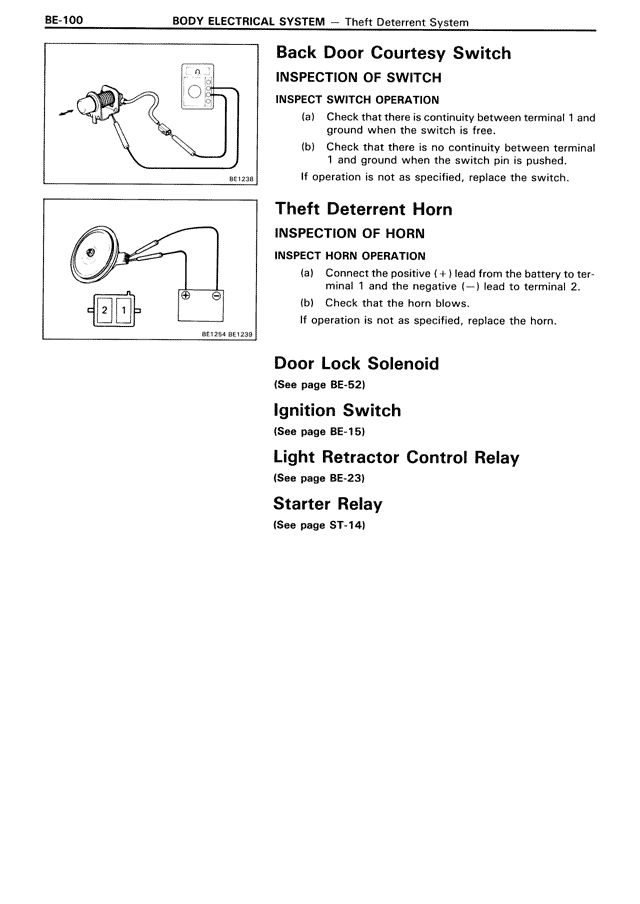

BE-100
BODY ELECTRICAL SYSTEM — Theft Deterrent System
Back Door Courtesy Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION
(a) Check that there is continuity between terminal 1 and ground when the switch is free.
(b) Check that there is no continuity between terminal 1 and ground when the switch pin is pushed.
If operation is not as specified, replace the switch.
Theft Deterrent Horn
INSPECTION OF HORN
INSPECT HORN OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (—) lead to terminal 2.
(b) Check that the horn blows.
If operation is not as specified, replace the horn.
Door Lock Solenoid
(See page BE-52)
Ignition Switch
(See page BE-15)
Light Retractor Control Relay
(See page BE-23)
Starter Relay
(See page ST-14)
