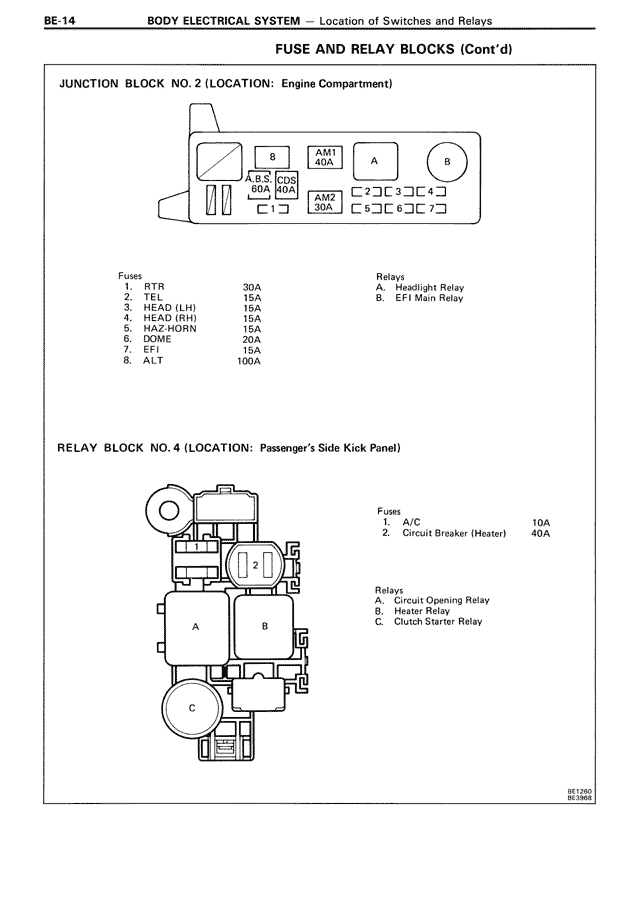

FUSE AND RELAY BLOCKS (Cont'd) JUNCTION BLOCK NO.2 (LOCATION: Engine Compartment) Fuses 1. RTR 30A 2. TEL 15A 3. IGN 15A 4. HEAD (RH) 15A 5. HAZ-HORN 15A 6. DOME 20A 7. EFI 15A 8. ALT 100A Relays A. Headlight Relay B. EFI Main Relay RELAY BLOCK NO.4 (LOCATION: Passenger's Side Kick Panel) Fuses 1. A/C 10A 2. Circuit Breaker (Heater) 40A Relays A. Circuit Opening Relay B. Heater Relay C. Clutch Starter Relay
