BE/Body Electrical System — Fuse and Relay Blocks, page 13

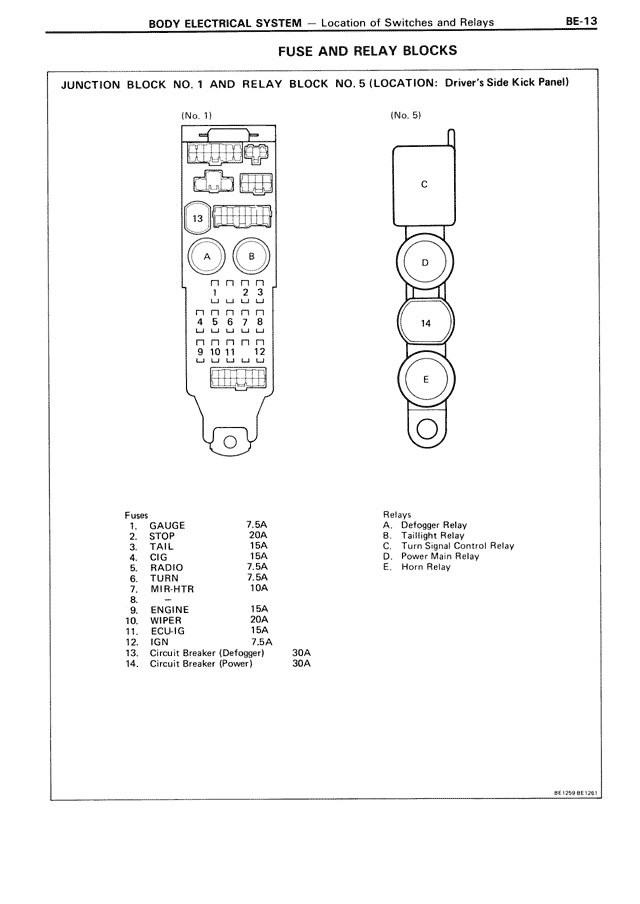

JUNCTION BLOCK NO. 1 AND RELAY BLOCK NO. 5 (LOCATION: Driver's Side Kick Panel)

(No. 1)

[Diagram showing fuse block layout with positions labeled 13, A, B, and numbered positions 1-12]

(No. 5)

[Diagram showing relay block layout with positions labeled C, D, 14, E]

Fuses
1. GAUGE          7.5A
2. STOP           20A
3. TAIL           15A
4. HAZ            15A
5. RADIO          7.5A
6. TURN           7.5A
7. MIR·HTR        10A
8. IG             —
9. ENGINE         15A
10. WIPER         20A
11. ECU·IG        15A
12. A/C           10A
13. Circuit Breaker (Defogger)   30A
14. Circuit Breaker (Power)      30A

Relays
A. Defogger Relay
B. Taillight Relay
C. Turn Signal Control Relay
D. Dimmer Relay
E. Horn Relay
