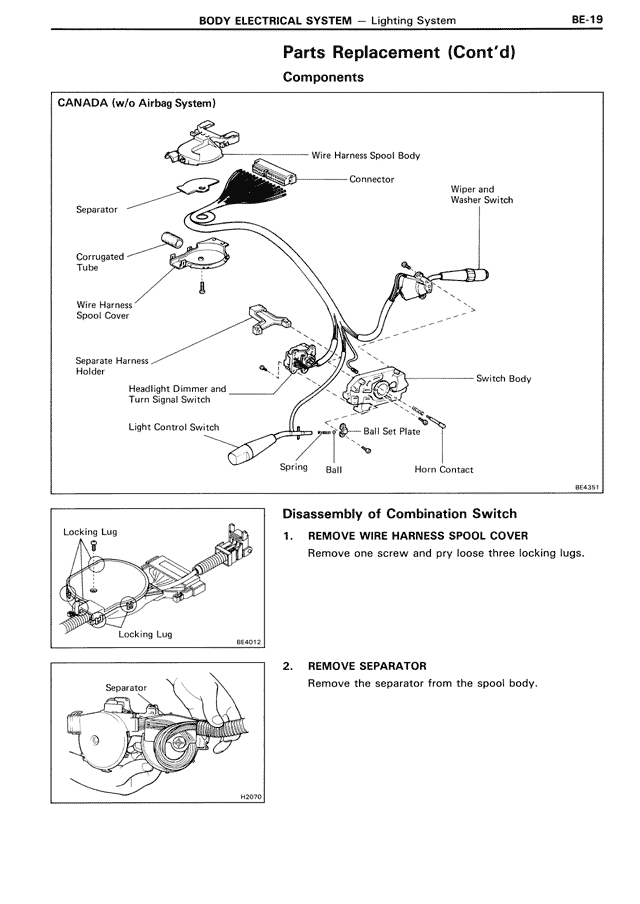

Parts Replacement (Cont'd)
Components
CANADA (w/o Airbag System)
Wire Harness Spool Body
Connector
Wiper and Washer Switch
Separator
Corrugated Tube
Wire Harness Spool Cover
Separate Harness Holder
Headlight Dimmer and Turn Signal Switch
Light Control Switch
Switch Body
Ball Set Plate
Spring
Ball
Horn Contact
BE4351
Disassembly of Combination Switch
Locking Lug
Locking Lug
BE4012
1. REMOVE WIRE HARNESS SPOOL COVER
Remove one screw and pry loose three locking lugs.
2. REMOVE SEPARATOR
Remove the separator from the spool body.
Separator
H2070
