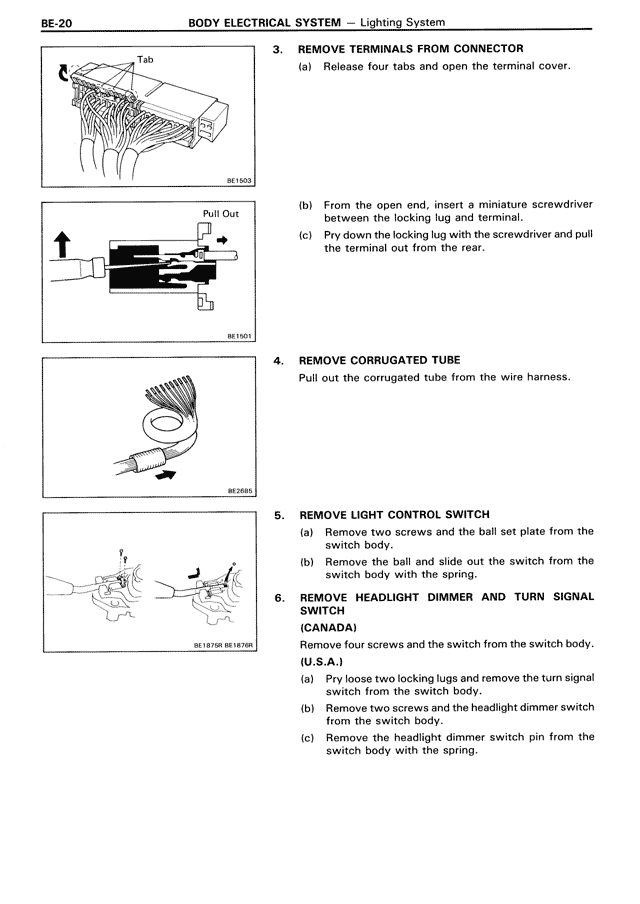

BE-20 BODY ELECTRICAL SYSTEM — Lighting System [Image showing Tab and BE1603] 3. REMOVE TERMINALS FROM CONNECTOR (a) Release four tabs and open the terminal cover. [Image showing Pull Out diagram BE1601] (b) From the open end, insert a miniature screwdriver between the locking lug and terminal. (c) Pry down the locking lug with the screwdriver and pull the terminal out from the rear. 4. REMOVE CORRUGATED TUBE Pull out the corrugated tube from the wire harness. [Image showing corrugated tube BE0965] 5. REMOVE LIGHT CONTROL SWITCH (a) Remove two screws and the ball set plate from the switch body. (b) Remove the ball and slide out the switch from the switch body with the spring. [Image showing switch removal BE147395 BE147396] 6. REMOVE HEADLIGHT DIMMER AND TURN SIGNAL SWITCH (CANADA) Remove four screws and the switch from the switch body. (U.S.A.) (a) Pry loose two locking lugs and remove the turn signal switch from the switch body. (b) Remove two screws and the headlight dimmer switch from the switch body. (c) Remove the headlight dimmer switch pin from the switch body with the spring.
