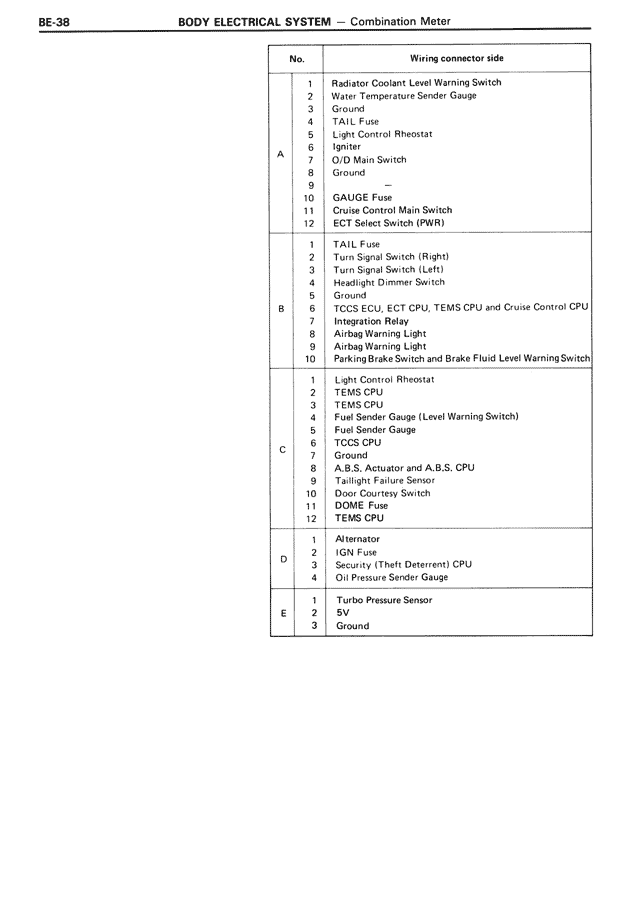

BE-38 BODY ELECTRICAL SYSTEM — Combination Meter
No. Wiring connector side
A
1 Radiator Coolant Level Warning Switch
2 Water Temperature Sender Gauge
3 Ground
4 TAIL Fuse
5 Light Control Rheostat
6 Igniter
7 O/D Main Switch
8 Ground
9 —
10 GAUGE Fuse
11 Cruise Control Main Switch
12 ECT Select Switch (PWR)
B
1 TAIL Fuse
2 Turn Signal Switch (Right)
3 Turn Signal Switch (Left)
4 Headlight Dimmer Switch
5 Ground
6 TCCS ECU, ECT CPU, TEMS CPU and Cruise Control CPU
7 Integration Relay
8 Passenger Seatbelt
9 Airbag Warning Light
10 Parking Brake Switch and Brake Fluid Level Warning Switch
C
1 Light Control Rheostat
2 TEMS CPU
3 TEMS CPU
4 Fuel Sender Gauge (Level Warning Switch)
5 Fuel Sender Gauge
6 TCCS CPU
7 Ground
8 A.B.S. Actuator and A.B.S. CPU
9 Taillight Failure Sensor
10 Door Courtesy Switch
11 DOME Fuse
12 TEMS CPU
D
1 Alternator
2 IGN Fuse
3 Security (Theft Deterrent) CPU
4 Oil Pressure Sender Gauge
E
1 Turbo Pressure Sensor
2 5V+
3 Ground
