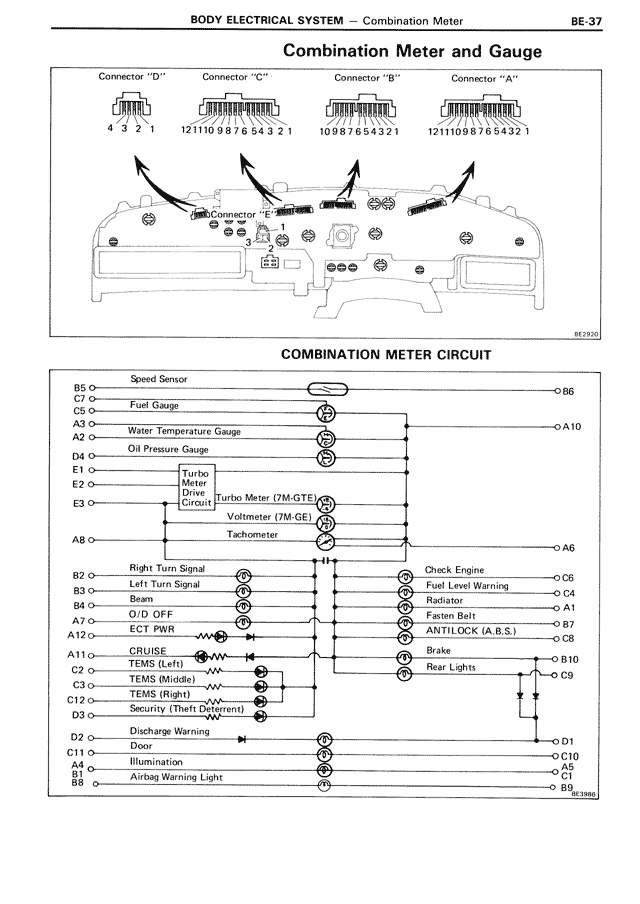

Combination Meter and Gauge
Connector "D" Connector "C" Connector "B" Connector "A"
4 3 2 1 12111098765 4 3 2 1 10987654321 121110987654321
Connector "E"
BE2203
COMBINATION METER CIRCUIT
B5 O——Speed Sensor——————————————————————————O B6
C7 O——
C5 O——Fuel Gauge——————————————————
A3 O——Water Temperature Gauge——————————————O A10
C2 O——Oil Pressure Gauge——————————————
D4 O——
E1 O—— Turbo
E2 O—— Meter Turbo Meter (7M-GTE)——
E3 O—— Drive Voltmeter (7M-GE)——
Circuit
A8 O—— Tachometer——————————————————O A6
B2 O——Right Turn Signal——————————————————Check Engine——O C6
B4 O——Left Turn Signal——————————————————Fuel Low Warning——O C4
B3 O——Beam——————————————————Radiator——O A4
B4 O——O/D OFF——————————————————Fasten Belt——O B7
A7 O——
A17 O——ETS——————————————————ANTI LOCK (A.B.S.)——O B8
A11 O——CRUISE——————————————————Brake——O B10
C2 O——TEMS (Left)——————————————————Rear Lights——O C9
C3 O——TEMS (Middle)——————————————————
C12 O——TEMS (Right)——————————————————
D3 O——Security (Theft Deterrent)——————————————————
D2 O——Discharge Warning——————————————————O D1
C11 O——Door——————————————————O C10
A4 O——Illumination——————————————————O C7
B1 O——Airbag Warning Light——————————————————O B9
B8 O—— BE2394
