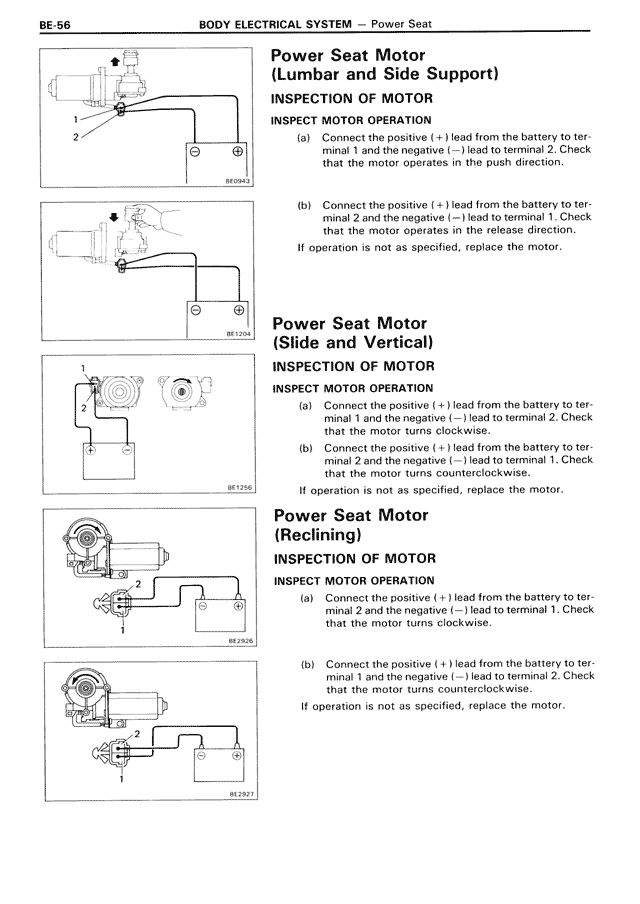

BE-56
BODY ELECTRICAL SYSTEM — Power Seat
Power Seat Motor
(Lumbar and Side Support)
INSPECTION OF MOTOR
INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (—) lead to terminal 2. Check that the motor operates in the push direction.
(b) Connect the positive (+) lead from the battery to terminal 2 and the negative (—) lead to terminal 1. Check that the motor operates in the release direction.
If operation is not as specified, replace the motor.
Power Seat Motor
(Slide and Vertical)
INSPECTION OF MOTOR
INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (—) lead to terminal 2. Check that the motor turns clockwise.
(b) Connect the positive (+) lead from the battery to terminal 2 and the negative (—) lead to terminal 1. Check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
Power Seat Motor
(Reclining)
INSPECTION OF MOTOR
INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 2 and the negative (—) lead to terminal 1. Check that the motor turns clockwise.
(b) Connect the positive (+) lead from the battery to terminal 1 and the negative (—) lead to terminal 2. Check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
