BE/Body Electrical System — Cruise Control System Wiring Diagram (U.S.A), page 58

BE-58

BODY ELECTRICAL SYSTEM — Cruise Control System

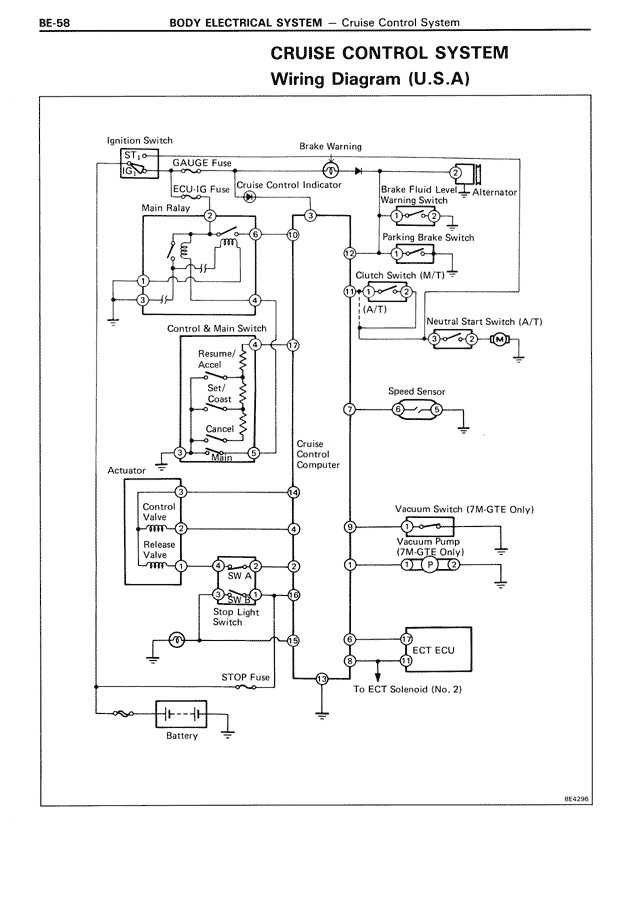

CRUISE CONTROL SYSTEM
Wiring Diagram (U.S.A)

Ignition Switch
ST
IG2
IG1
GAUGE Fuse
ECU IG Fuse
Main Relay
Brake Warning
Cruise Control Indicator
Brake Fluid Level
Alternator
Warning Switch
Parking Brake Switch
Clutch Switch (M/T)
(A/T)
Neutral Start Switch (A/T)
Control & Main Switch
Resume/
Accel
Set/
Coast
Cancel
Main
Speed Sensor
Cruise
Control
Computer
Actuator
Control
Valve
Vacuum Switch (7M-GTE Only)
Release
Valve
Vacuum Pump
(7M-GTE Only)
SW A
Stop Light
Switch
ECT ECU
STOP Fuse
To ECT Solenoid (No. 2)
Battery

BE4296
