BE/Body Electrical System — Cruise Control System (Cont'd) Wiring Diagram (Canada), page 59

BODY ELECTRICAL SYSTEM — Cruise Control System                    BE-59

CRUIISE CONTROL SYSTEM (Cont'd)

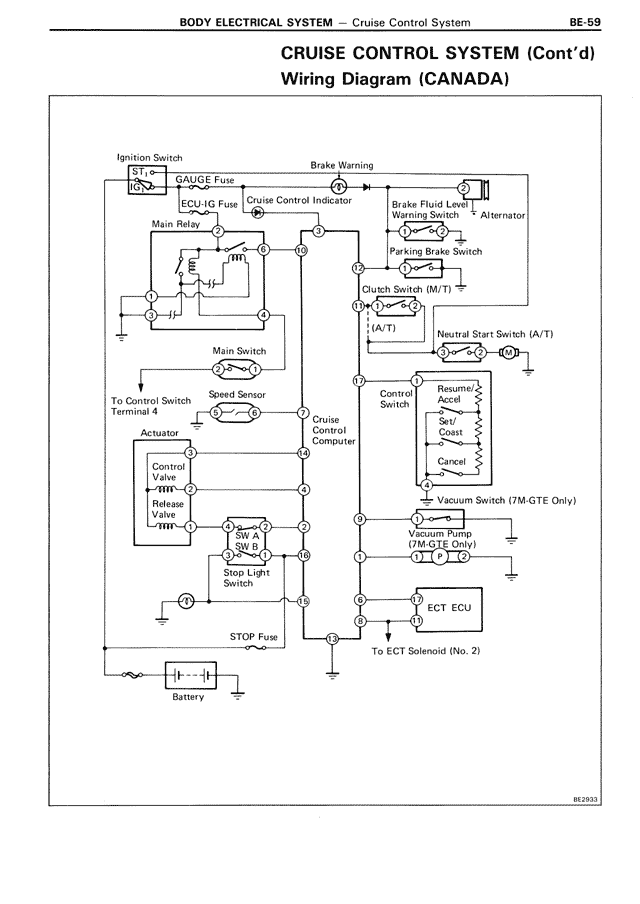

Wiring Diagram (CANADA)

Ignition Switch
ST1
ST2

GAUGE Fuse
ECU-IG Fuse

Brake Warning
Cruise Control Indicator
Brake Fluid Level Warning Switch
Alternator
Parking Brake Switch

Main Relay

Clutch Switch (M/T)
(A/T)
Neutral Start Switch (A/T)
(A/T)

Main Switch

To Control Switch Terminal 4
Speed Sensor

Cruise Control Computer

Control Switch
Resume
Accel
Set
Coast
Cancel

Actuator
Control Valve
Vent Valve

Vacuum Switch (7M-GTE Only)
Vacuum Pump (7M-GTE Only)

SW A
SW-B
N.C.
Stop Light Switch

ECT ECU

STOP Fuse

To ECT Solenoid (No. 2)

Battery

BE2933
