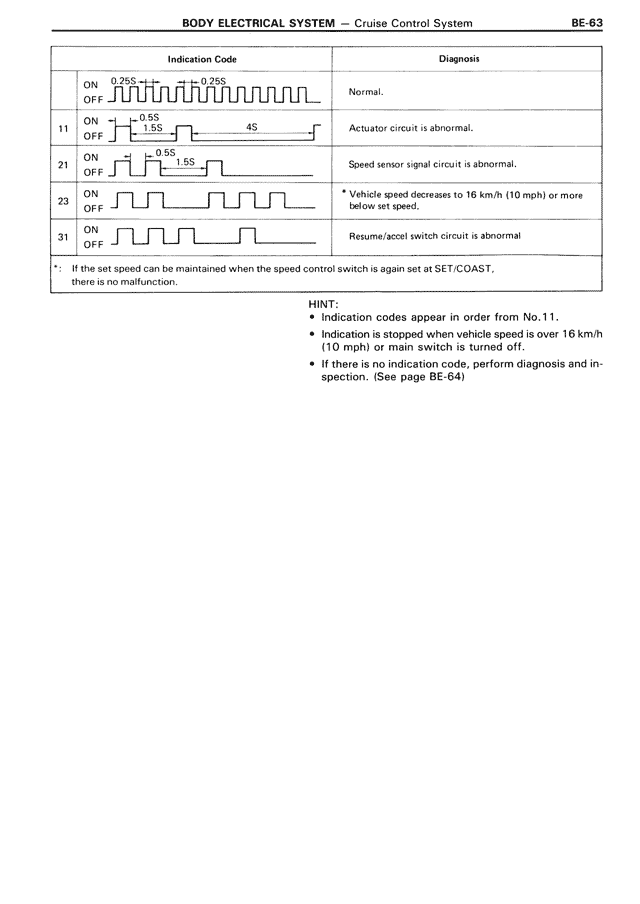

BODY ELECTRICAL SYSTEM — Cruise Control System BE-63
Indication Code Diagnosis
ON 0.25S 0.25S
OFF Normal.
11 ON 0.5S
OFF 1.5S 4S Actuator circuit is abnormal.
21 ON 0.5S
OFF 1.5S Speed sensor signal circuit is abnormal.
23 ON
OFF *Vehicle speed decreases to 16 km/h (10 mph) or more
below set speed.
31 ON
OFF Resume/accel switch circuit is abnormal
*: If the set speed can be maintained when the speed control switch is again set at SET/COAST,
there is no malfunction.
HINT:
• Indication codes appear in order from No.11.
• Indication is stopped when vehicle speed is over 16 km/h
(10 mph) or main switch is turned off.
• If there is no indication code, perform diagnosis and in-
spection. (See page BE-64)
