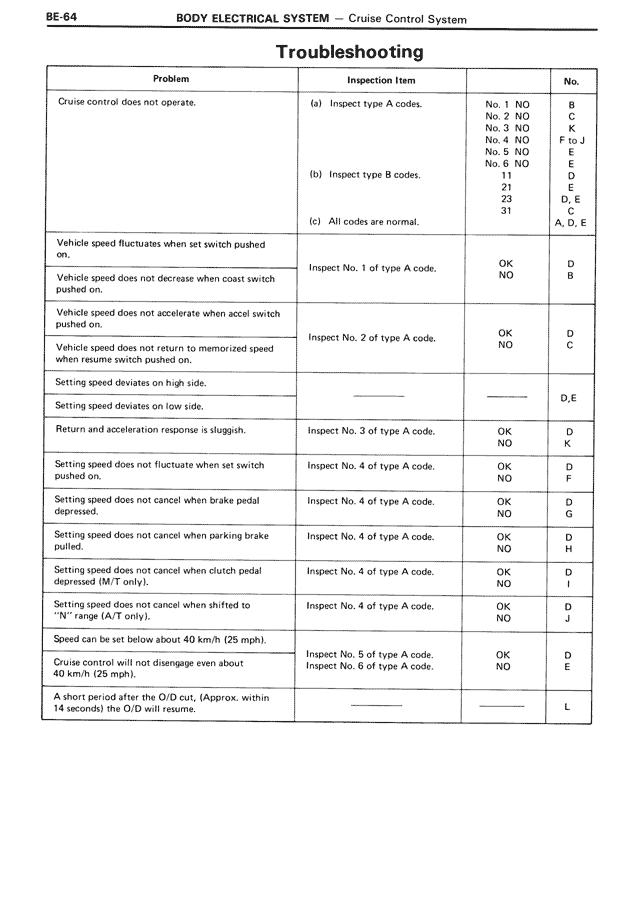

Troubleshooting
Problem | Inspection Item | No.
Cruise control does not operate. | (a) Inspect type A codes. | No. 1 NO B
| | No. 2 NO C
| | No. 3 NO K
| | No. 4 NO F to J
| | No. 5 NO F
| | No. 6 NO E
| (b) Inspect type B codes. | 11 D
| | 21 E
| | 23 D, E
| | 31 K
| (c) All codes are normal. | A, D, E
Vehicle speed fluctuates when set switch pushed on. | |
Vehicle speed does not decrease when coast switch pushed on. | Inspect No. 1 of type A code. | OK D
| | NO B
Vehicle speed does not accelerate when accel switch pushed on. | |
Vehicle speed does not return to memorized speed when resume switch pushed on. | Inspect No. 2 of type A code. | OK D
| | NO C
Setting speed deviates on high side. | |
Setting speed deviates on low side. | | D,E
Return and acceleration response is sluggish. | Inspect No. 3 of type A code. | OK D
| | NO K
Setting speed does not fluctuate when set switch pushed on. | Inspect No. 4 of type A code. | OK D
| | NO F
Setting speed does not cancel when brake pedal depressed. | Inspect No. 4 of type A code. | OK D
| | NO G
Setting speed does not cancel when parking brake pulled. | Inspect No. 4 of type A code. | OK D
| | NO H
Setting speed does not cancel when clutch pedal depressed (M/T only). | Inspect No. 4 of type A code. | OK D
| | NO I
Setting speed does not cancel when shifted to "N" range (A/T only). | Inspect No. 4 of type A code. | OK D
| | NO J
Speed can be set below about 40 km/h (25 mph). | |
Cruise control will not disengage even about 40 km/h (25 mph). | Inspect No. 5 of type A code. | OK D
Inspect No. 6 of type A code. | NO E
A short period after the O/D cut. (Approx. within 14 seconds) the O/D will resume. | | L
