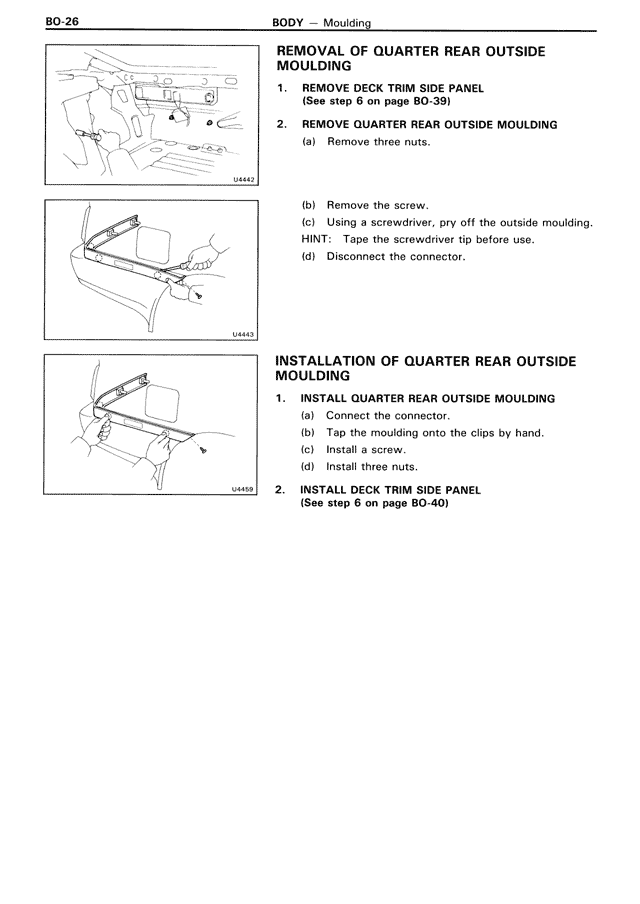

REMOVAL OF QUARTER REAR OUTSIDE MOULDING — MK3 Supra Body, page 26
100%
BO-26 BODY — Moulding REMOVAL OF QUARTER REAR OUTSIDE MOULDING 1. REMOVE DECK TRIM SIDE PANEL (See step 6 on page BO-39) 2. REMOVE QUARTER REAR OUTSIDE MOULDING (a) Remove three nuts. (b) Remove the screw. (c) Using a screwdriver, pry off the outside moulding. HINT: Tape the screwdriver tip before use. (d) Disconnect the connector. INSTALLATION OF QUARTER REAR OUTSIDE MOULDING 1. INSTALL QUARTER REAR OUTSIDE MOULDING (a) Connect the connector. (b) Tap the moulding onto the clips by hand. (c) Install a screw. (d) Install three nuts. 2. INSTALL DECK TRIM SIDE PANEL (See step 6 on page BO-40)
