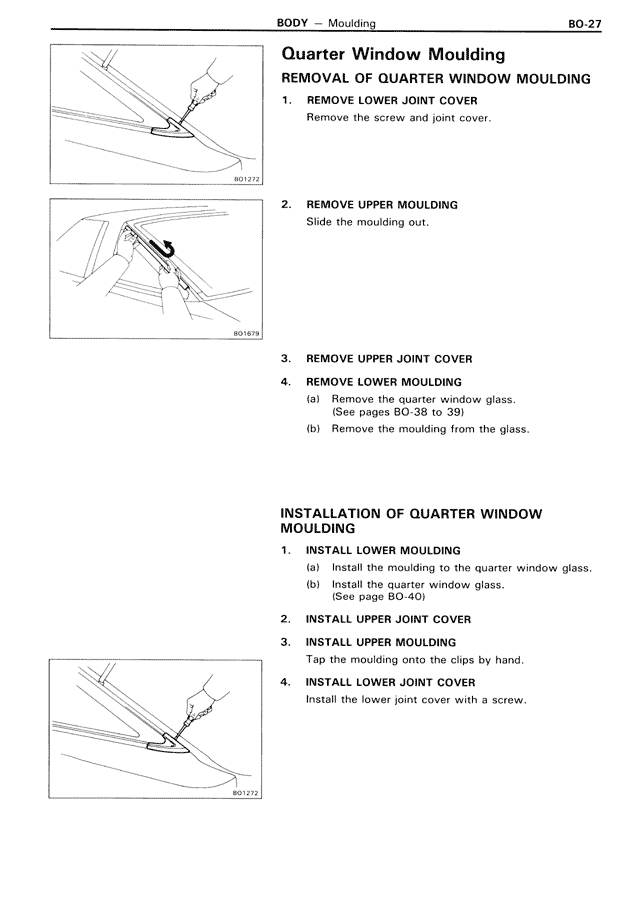

Quarter Window Moulding
REMOVAL OF QUARTER WINDOW MOULDING
1. REMOVE LOWER JOINT COVER
Remove the screw and joint cover.
2. REMOVE UPPER MOULDING
Slide the moulding out.
3. REMOVE UPPER JOINT COVER
4. REMOVE LOWER MOULDING
(a) Remove the quarter window glass.
(See pages BO-38 to 39)
(b) Remove the moulding from the glass.
INSTALLATION OF QUARTER WINDOW MOULDING
1. INSTALL LOWER MOULDING
(a) Install the moulding to the quarter window glass.
(b) Install the quarter window glass.
(See page BO-40)
2. INSTALL UPPER JOINT COVER
3. INSTALL UPPER MOULDING
Tap the moulding onto the clips by hand.
4. INSTALL LOWER JOINT COVER
Install the lower joint cover with a screw.
