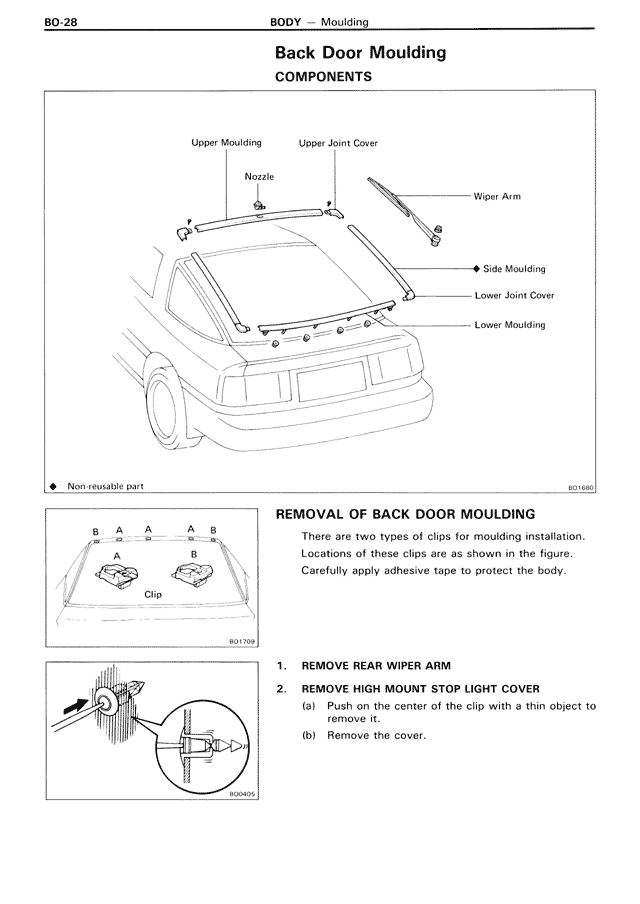

Back Door Moulding
COMPONENTS
Upper Moulding
Upper Joint Cover
Nozzle
Wiper Arm
Side Moulding
Lower Joint Cover
Lower Moulding
Non-reusable part
REMOVAL OF BACK DOOR MOULDING
There are two types of clips for moulding installation.
Locations of these clips are as shown in the figure.
Carefully apply adhesive tape to protect the body.
B A A A B
A B
Clip
1. REMOVE REAR WIPER ARM
2. REMOVE HIGH MOUNT STOP LIGHT COVER
(a) Push on the center of the clip with a thin object to remove it.
(b) Remove the cover.
