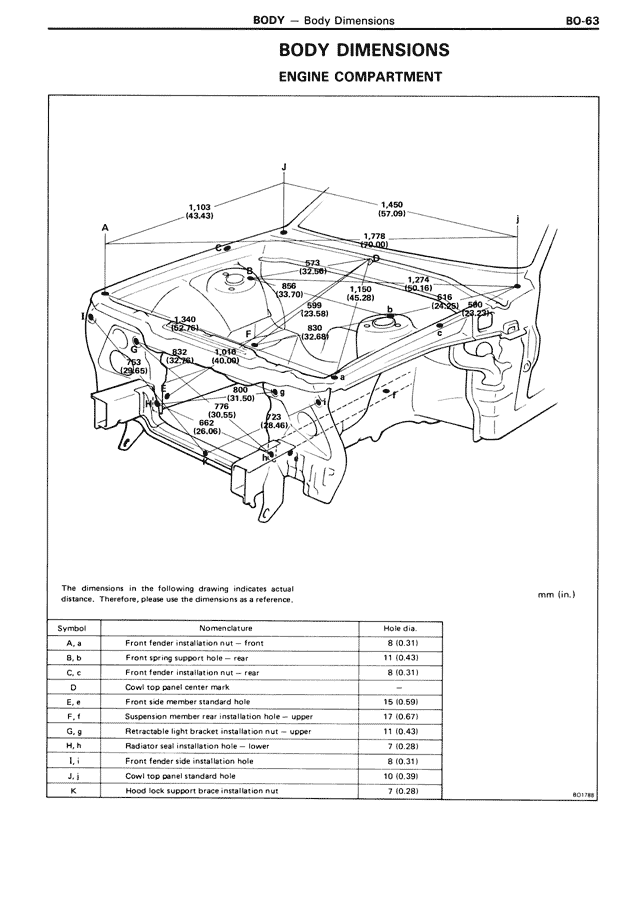

BODY DIMENSIONS
ENGINE COMPARTMENT
1,103
(43.43)
1,450
(57.09)
1,778
(70.00)
673
(26.78)
1,150
(45.28)
899
(33.70)
892
(35.12)
560
(22.05)
1,340
(52.76)
600
(23.62)
830
(32.68)
827
(32.56)
1,018
(40.08)
1,240
(48.82)
971
(38.23)
1,088
(42.83)
1,156
(45.51)
662
(26.06)
The dimensions in the following drawing indicates actual
distance. Therefore, please use the dimension as a reference.
mm (in.)
Symbol | Nomenclature | Hole dia.
A, a | Front fender installation nut — front | 8 (0.31)
B, b | Front spring support hole — rear | 11 (0.43)
C, c | Front fender installation nut — rear | 8 (0.31)
D | Cowl top panel center mark | —
E, e | Front foot member standard hole | 15 (0.59)
F, f | Suspension member rear installation hole — upper | 17 (0.67)
G, g | Retractable light bracket installation nut — upper | 11 (0.43)
H, h | Radiator seal installation hole — lower | 7 (0.28)
I, i | Front fender side installation hole | 8 (0.31)
J, j | Cowl top panel standard hole | 10 (0.39)
K | Hood lock support brace installation nut | 7 (0.28)
BO798
