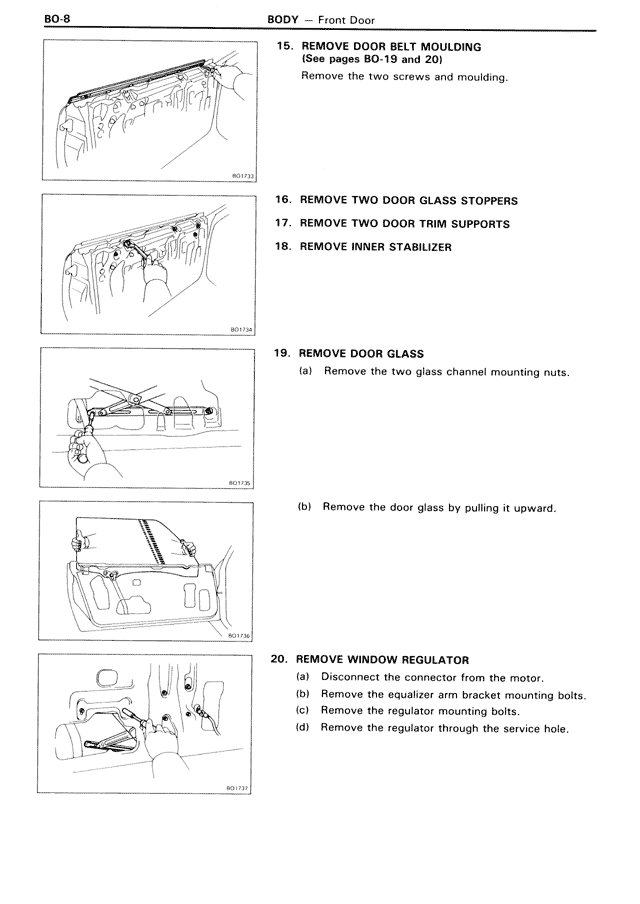

BODY — Front Door — MK3 Supra Body, page 8
100%
BO-8 BODY — Front Door 15. REMOVE DOOR BELT MOULDING (See pages BO-19 and 20) Remove the two screws and moulding. BD1721 16. REMOVE TWO DOOR GLASS STOPPERS 17. REMOVE TWO DOOR TRIM SUPPORTS 18. REMOVE INNER STABILIZER BD1724 19. REMOVE DOOR GLASS (a) Remove the two glass channel mounting nuts. BD1735 (b) Remove the door glass by pulling it upward. BD1736 20. REMOVE WINDOW REGULATOR (a) Disconnect the connector from the motor. (b) Remove the equalizer arm bracket mounting bolts. (c) Remove the regulator mounting bolts. (d) Remove the regulator through the service hole. BD1737
