BODY — Front Door — MK3 Supra Body, page 9
100%

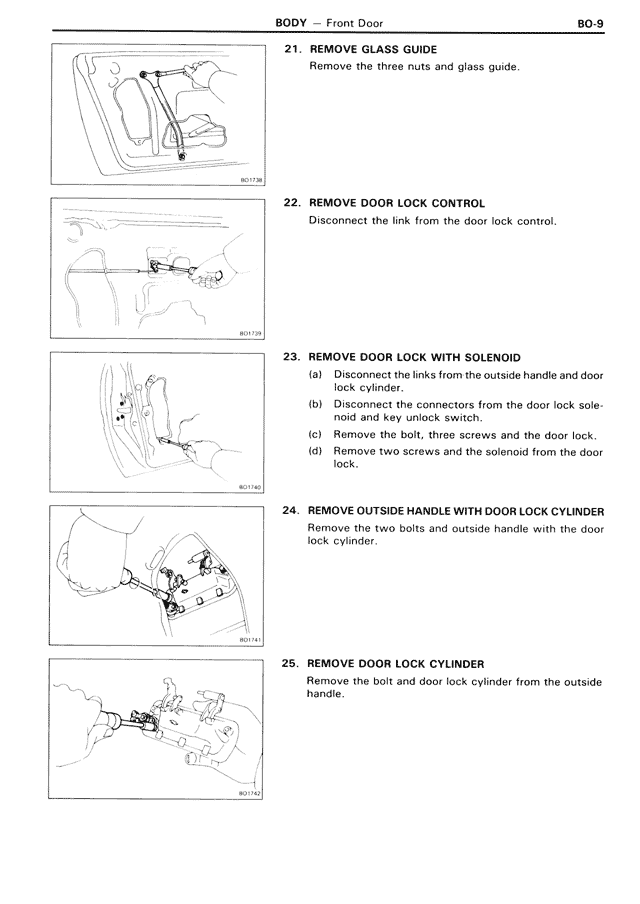

21. REMOVE GLASS GUIDE Remove the three nuts and glass guide. 22. REMOVE DOOR LOCK CONTROL Disconnect the link from the door lock control. 23. REMOVE DOOR LOCK WITH SOLENOID (a) Disconnect the links from the outside handle and door lock cylinder. (b) Disconnect the connectors from the door lock solenoid and key unlock switch. (c) Remove the bolt, three screws and the door lock. (d) Remove two screws and the solenoid from the door lock. 24. REMOVE OUTSIDE HANDLE WITH DOOR LOCK CYLINDER Remove the two bolts and outside handle with the door lock cylinder. 25. REMOVE DOOR LOCK CYLINDER Remove the bolt and door lock cylinder from the outside handle.
