BRAKE SYSTEM — Master Cylinder

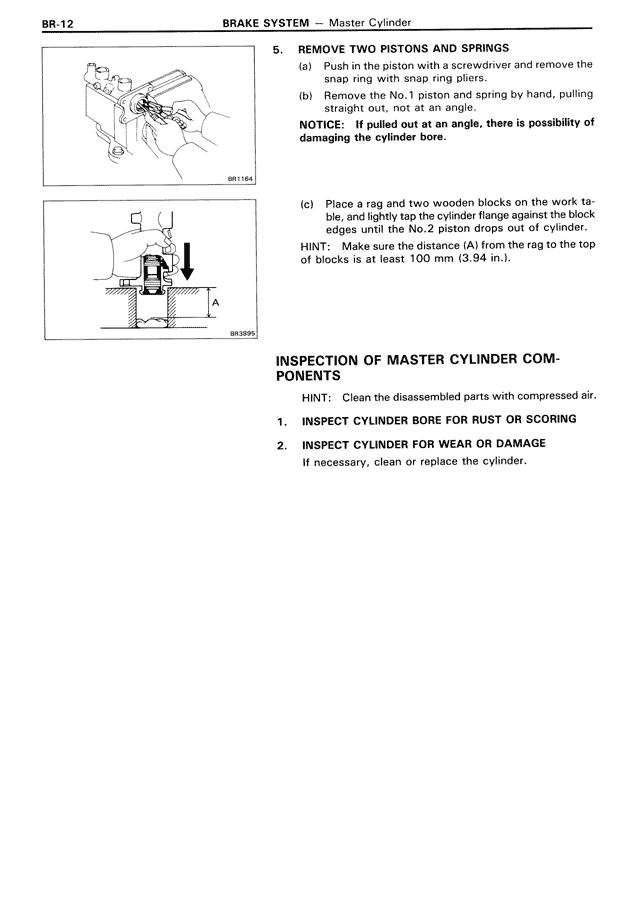

5. REMOVE TWO PISTONS AND SPRINGS
(a) Push in the piston with a screwdriver and remove the snap ring with snap ring pliers.
(b) Remove the No.1 piston and spring by hand, pulling straight out, not at an angle.
NOTICE: If pulled out at an angle, there is possibility of damaging the cylinder bore.
(c) Place a rag and two wooden blocks on the work table, and lightly tap the cylinder flange against the block edges until the No.2 piston drops out of cylinder.
HINT: Make sure the distance (A) from the rag to the top of blocks is at least 100 mm (3.94 in.).
INSPECTION OF MASTER CYLINDER COMPONENTS
HINT: Clean the disassembled parts with compressed air.
1. INSPECT CYLINDER BORE FOR RUST OR SCORING
2. INSPECT CYLINDER FOR WEAR OR DAMAGE
If necessary, clean or replace the cylinder.
