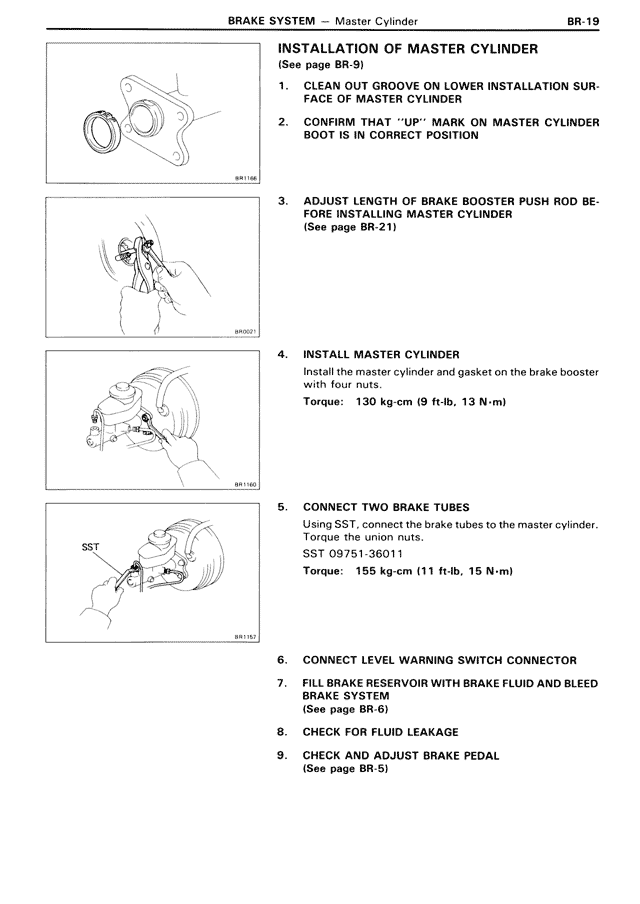

BRAKE SYSTEM — Master Cylinder BR-19 INSTALLATION OF MASTER CYLINDER (See page BR-9) 1. CLEAN OUT GROOVE ON LOWER INSTALLATION SURFACE OF MASTER CYLINDER 2. CONFIRM THAT "UP" MARK ON MASTER CYLINDER BOOT IS IN CORRECT POSITION 3. ADJUST LENGTH OF BRAKE BOOSTER PUSH ROD BEFORE INSTALLING MASTER CYLINDER (See page BR-21) 4. INSTALL MASTER CYLINDER Install the master cylinder and gasket on the brake booster with four nuts. Torque: 130 kg-cm (9 ft-lb, 13 N·m) 5. CONNECT TWO BRAKE TUBES Using SST, connect the brake tubes to the master cylinder. Torque the union nuts. SST 09751-36011 Torque: 155 kg-cm (11 ft-lb, 15 N·m) 6. CONNECT LEVEL WARNING SWITCH CONNECTOR 7. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM (See page BR-6) 8. CHECK FOR FLUID LEAKAGE 9. CHECK AND ADJUST BRAKE PEDAL (See page BR-5)
