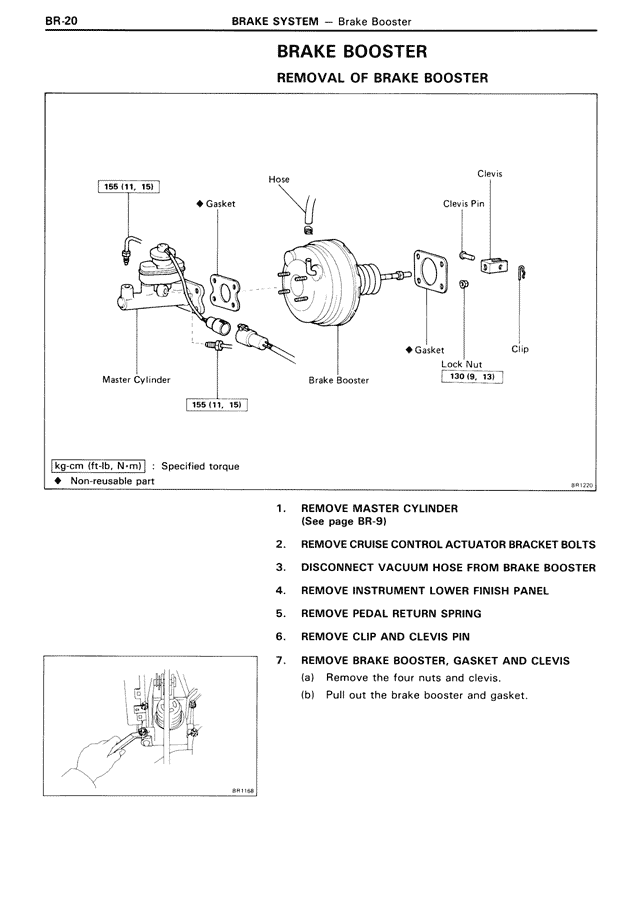

BR-20

BRAKE SYSTEM — Brake Booster

BRAKE BOOSTER
REMOVAL OF BRAKE BOOSTER

[DIAGRAM showing Master Cylinder, Brake Booster, and related components with labels for:
- Hose
- Clevis
- Clevis Pin
- Gasket
- Clip
- Lock Nut [130 (9, 13)]
- 155 (11, 10) torque specifications]

kg-cm (ft-lb, N-m) : Specified torque
♦ Non-reusable part

1. REMOVE MASTER CYLINDER
   (See page BR-9)

2. REMOVE CRUISE CONTROL ACTUATOR BRACKET BOLTS

3. DISCONNECT VACUUM HOSE FROM BRAKE BOOSTER

4. REMOVE INSTRUMENT LOWER FINISH PANEL

5. REMOVE PEDAL RETURN SPRING

6. REMOVE CLIP AND CLEVIS PIN

7. REMOVE BRAKE BOOSTER, GASKET AND CLEVIS
   (a) Remove the four nuts and clevis.
   (b) Pull out the brake booster and gasket.

[DIAGRAM showing hands removing brake booster components]
