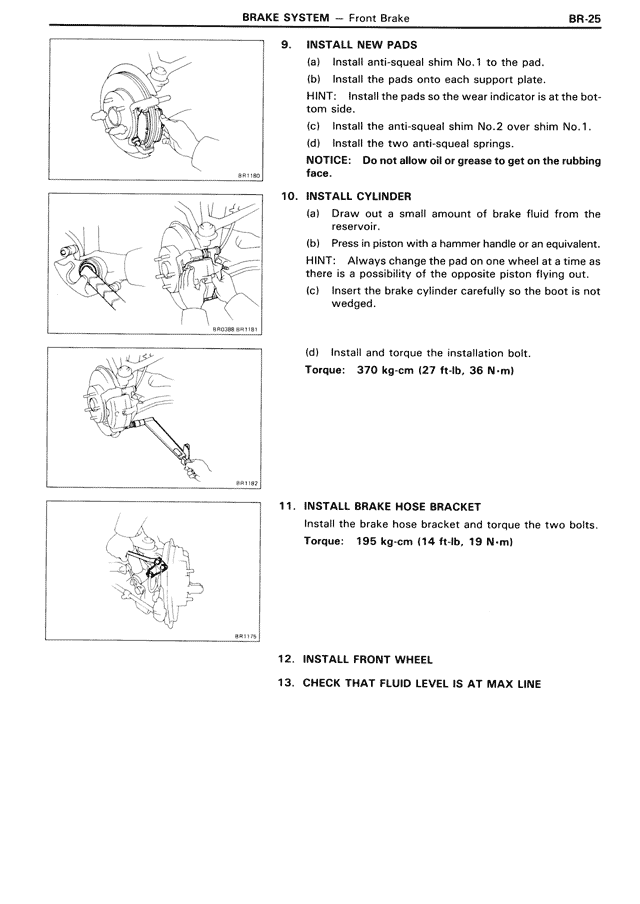

9. INSTALL NEW PADS (a) Install anti-squeal shim No.1 to the pad. (b) Install the pads onto each support plate. HINT: Install the pads so the wear indicator is at the bottom side. (c) Install the anti-squeal shim No.2 over shim No.1. (d) Install the two anti-squeal springs. NOTICE: Do not allow oil or grease to get on the rubbing face. 10. INSTALL CYLINDER (a) Draw out a small amount of brake fluid from the reservoir. (b) Press in piston with a hammer handle or an equivalent. HINT: Always change the pad on one wheel at a time as there is a possibility of the opposite piston flying out. (c) Insert the brake cylinder carefully so the boot is not wedged. (d) Install and torque the installation bolt. Torque: 370 kg-cm (27 ft-lb, 36 N-m) 11. INSTALL BRAKE HOSE BRACKET Install the brake hose bracket and torque the two bolts. Torque: 195 kg-cm (14 ft-lb, 19 N-m) 12. INSTALL FRONT WHEEL 13. CHECK THAT FLUID LEVEL IS AT MAX LINE
