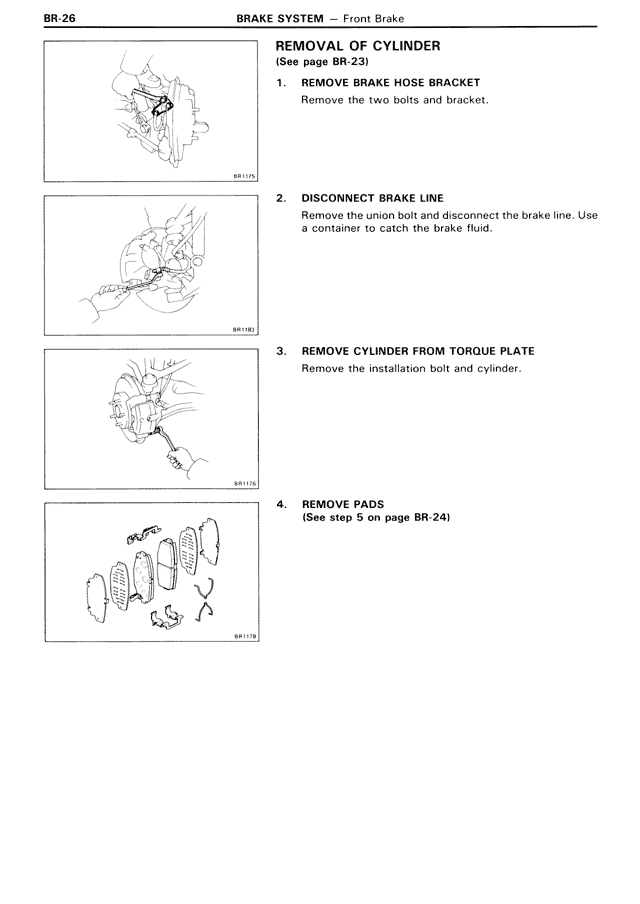

REMOVAL OF CYLINDER (See page BR-23) 1. REMOVE BRAKE HOSE BRACKET Remove the two bolts and bracket. 2. DISCONNECT BRAKE LINE Remove the union bolt and disconnect the brake line. Use a container to catch the brake fluid. 3. REMOVE CYLINDER FROM TORQUE PLATE Remove the installation bolt and cylinder. 4. REMOVE PADS (See step 5 on page BR-24)
