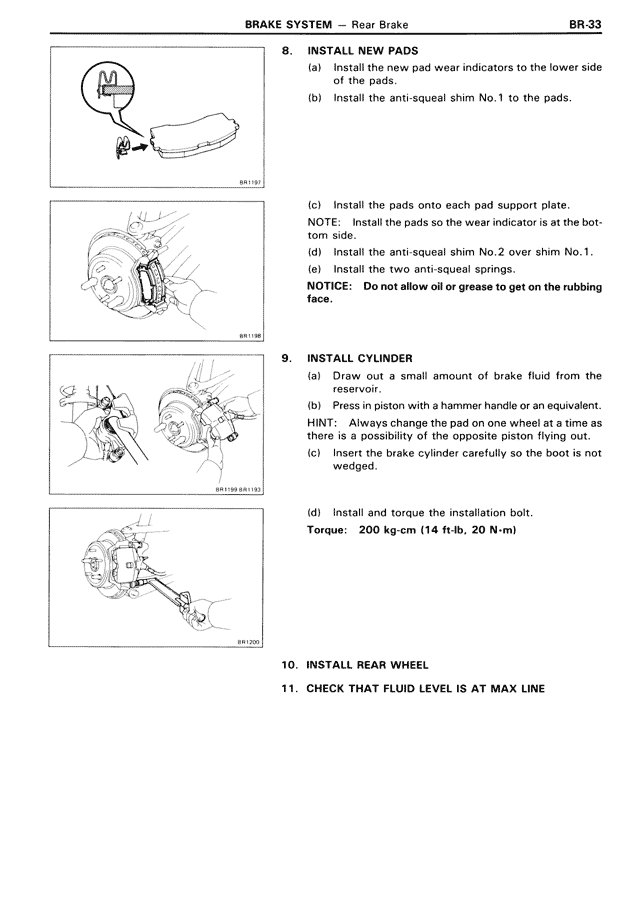

8. INSTALL NEW PADS (a) Install the new pad wear indicators to the lower side of the pads. (b) Install the anti-squeal shim No.1 to the pads. (c) Install the pads onto each pad support plate. NOTE: Install the pads so the wear indicator is at the bottom side. (d) Install the anti-squeal shim No.2 over shim No.1. (e) Install the two anti-squeal springs. NOTICE: Do not allow oil or grease to get on the rubbing face. 9. INSTALL CYLINDER (a) Draw out a small amount of brake fluid from the reservoir. (b) Press in piston with a hammer handle or an equivalent. HINT: Always change the pad on one wheel at a time as there is a possibility of the opposite piston flying out. (c) Insert the brake cylinder carefully so the boot is not wedged. (d) Install and torque the installation bolt. Torque: 200 kg·cm (14 ft·lb, 20 N·m) 10. INSTALL REAR WHEEL 11. CHECK THAT FLUID LEVEL IS AT MAX LINE
