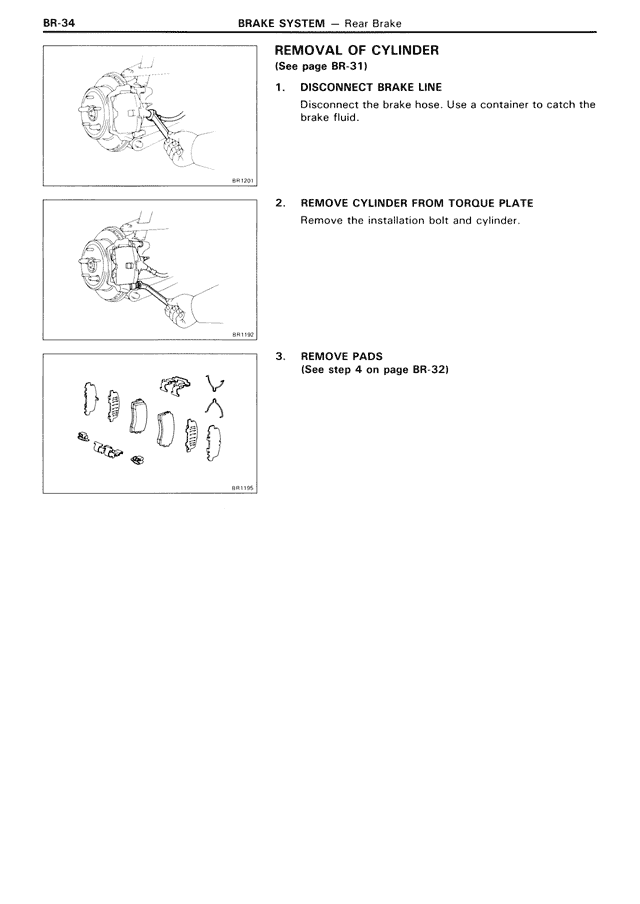

BR-34 BRAKE SYSTEM — Rear Brake REMOVAL OF CYLINDER (See page BR-31) 1. DISCONNECT BRAKE LINE Disconnect the brake hose. Use a container to catch the brake fluid. 2. REMOVE CYLINDER FROM TORQUE PLATE Remove the installation bolt and cylinder. 3. REMOVE PADS (See step 4 on page BR-32)
