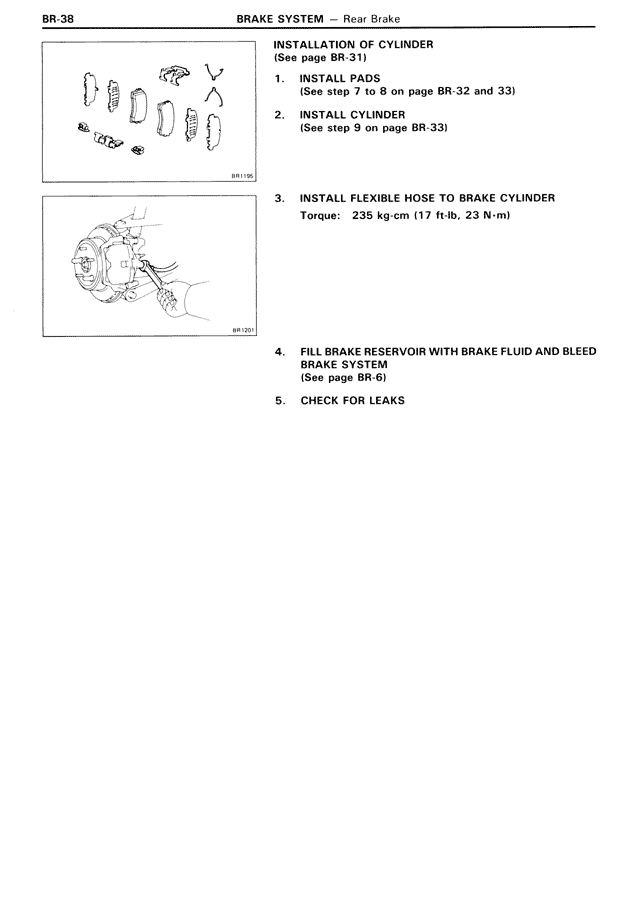

BR-38 BRAKE SYSTEM — Rear Brake INSTALLATION OF CYLINDER (See page BR-31) 1. INSTALL PADS (See step 7 to 8 on page BR-32 and 33) 2. INSTALL CYLINDER (See step 9 on page BR-33) 3. INSTALL FLEXIBLE HOSE TO BRAKE CYLINDER Torque: 235 kg·cm (17 ft·lb, 23 N·m) 4. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM (See page BR-6) 5. CHECK FOR LEAKS
