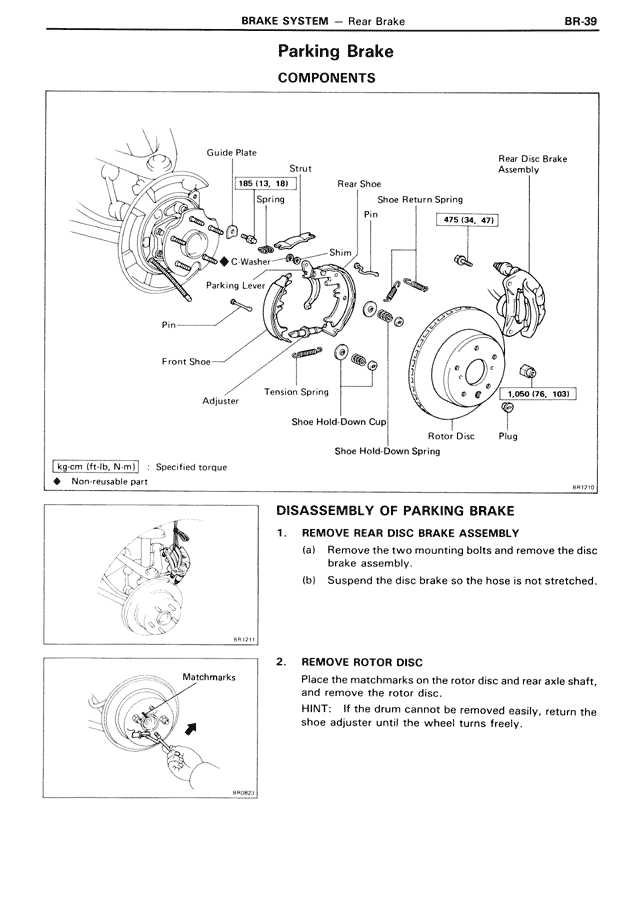

Parking Brake
COMPONENTS
Guide Plate
Strut
Rear Disc Brake Assembly
[185 (13, 18)]
Rear Shoe
Spring
Shoe Return Spring
Pin
475 (34, 47)
C-Washer
Shim
Parking Lever
Pin
Front Shoe
Adjuster
Tension Spring
Shoe Hold Down Cup
1,050 (76, 103)
Rotor Disc
Plug
Shoe Hold Down Spring
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
BR1270
DISASSEMBLY OF PARKING BRAKE
1. REMOVE REAR DISC BRAKE ASSEMBLY
(a) Remove the two mounting bolts and remove the disc brake assembly.
(b) Suspend the disc brake so the hose is not stretched.
BR1271
2. REMOVE ROTOR DISC
Place the matchmarks on the rotor disc and rear axle shaft, and remove the rotor disc.
HINT: If the drum cannot be removed easily, return the shoe adjuster until the wheel turns freely.
Matchmarks
BR0822
