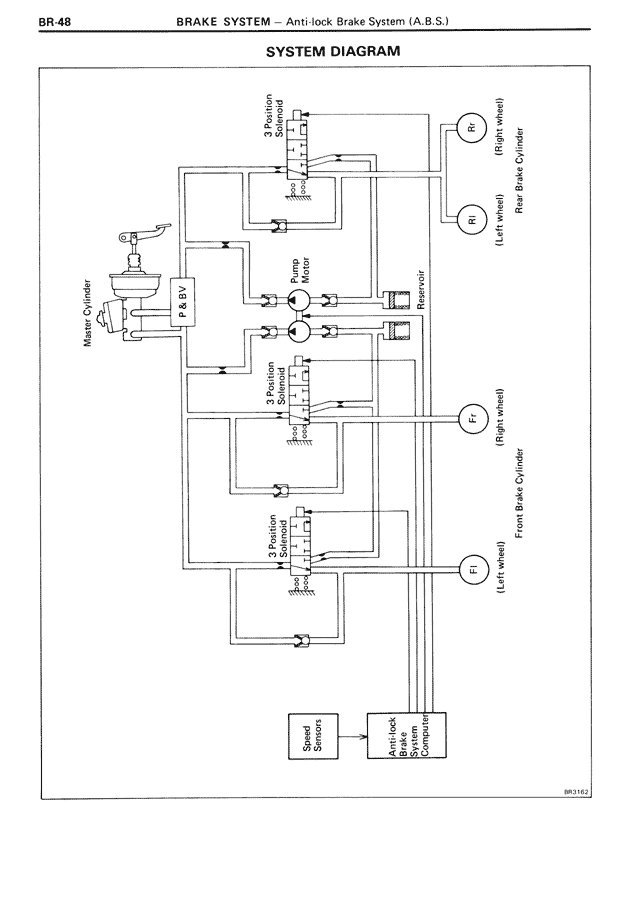

BR-48 BRAKE SYSTEM — Anti-lock Brake System (A.B.S.) SYSTEM DIAGRAM [Diagram labels, reading from top to bottom, left to right:] 3-Position Solenoid R (Right wheel) Rear Brake Cylinder L (Left wheel) Master Cylinder P & BV P Reservoir R (Right wheel) 3-Position Solenoid Front Brake Cylinder F (Left wheel) 3-Position Solenoid Speed Sensors Anti-lock Brake System Computer BR1142
